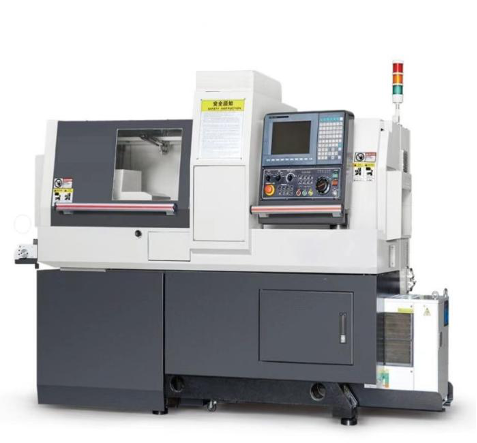

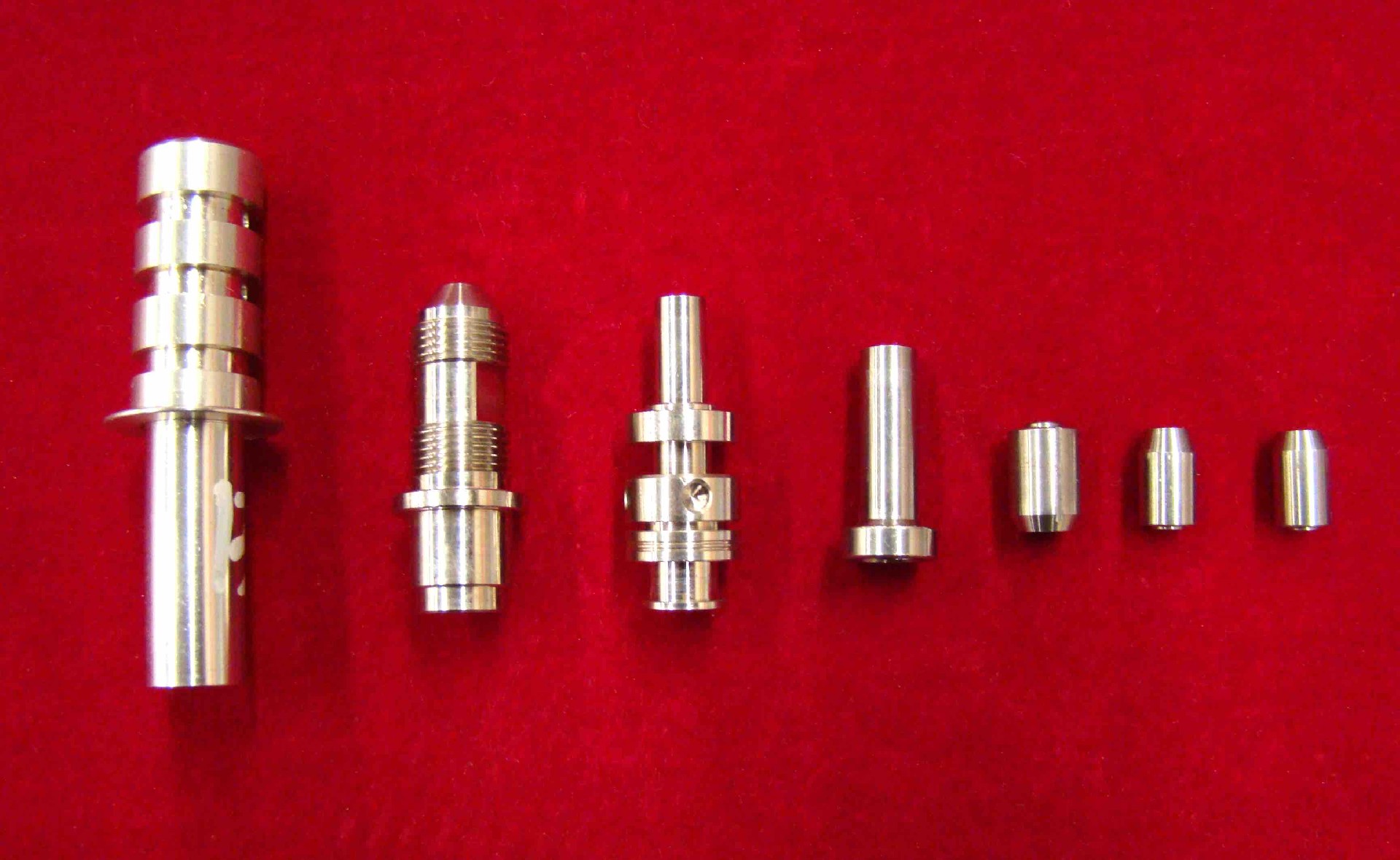

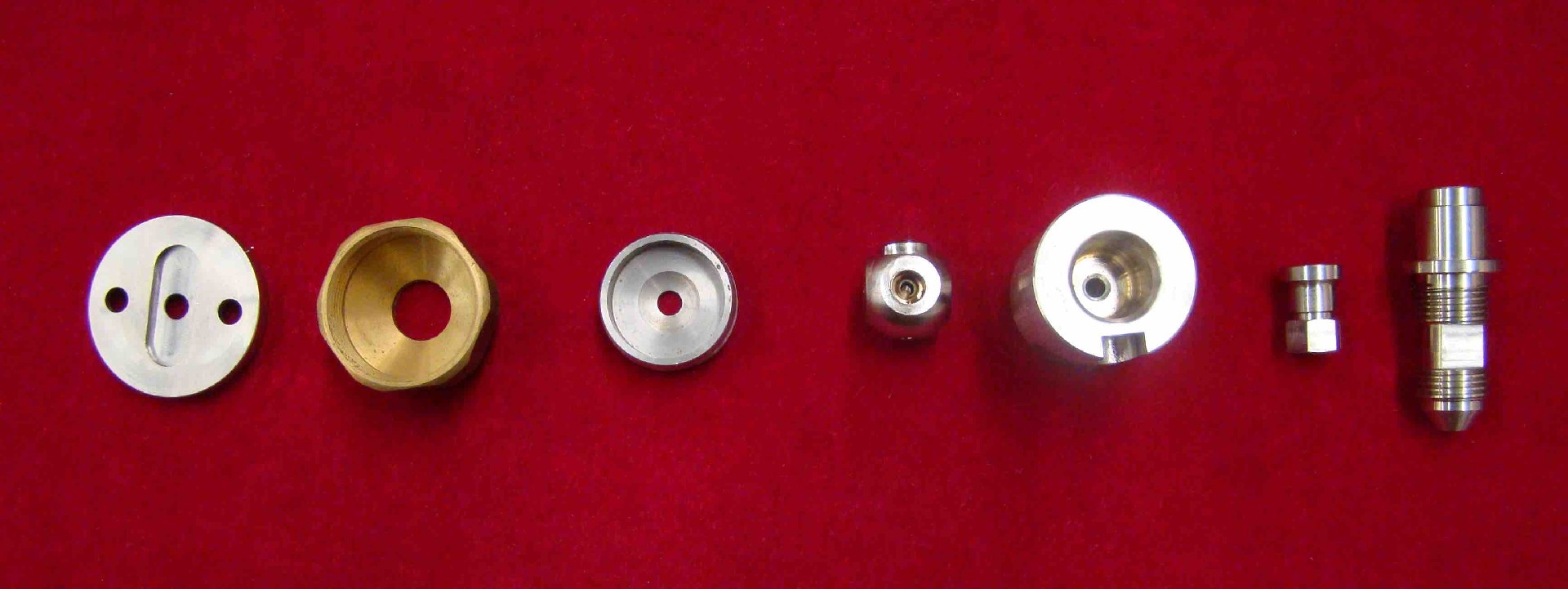

Swiss type lathe SC125

1

Hidden electric spindle device and clamping device

13

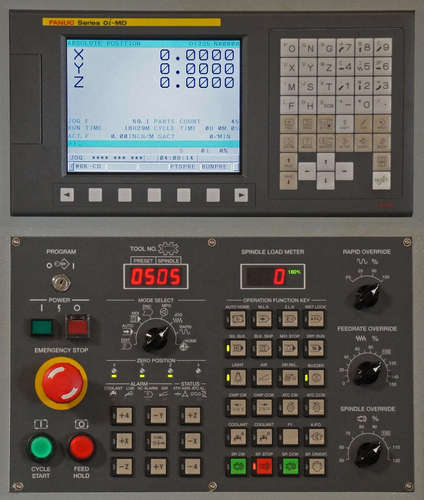

CNC system (FANUC 0i-TF Plus)

2

Second hidden electric spindle and clamping device

14

10.4-inch color LCD display

3

Synchronous transducing sleeve

15

C-axis control (spindle/back axis)

4

No guide sleeve and protective device

16

Tapping function

5

Spindle oil cooler machine

20

Network cable interface

6

Automatic lubrication system

21

Air cooling system for electrical cabinets

7

Cutting cooling oil system

22

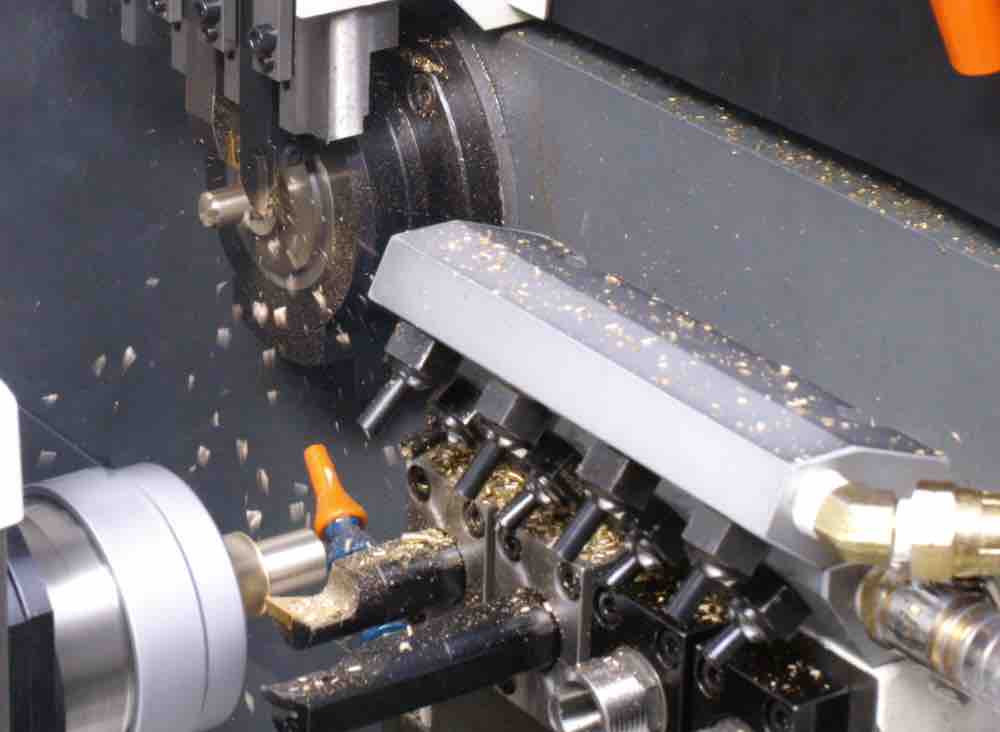

6x□10 OD tool holders

8

Air curtain dust system

23

Side milling head unit (4-axis type)

9

Air handling unit

24

Front-facing drilling unit (4-axis type)

10

Part ejection device

25

Rear fixed drilling unit (4 × ER16)

11

Product conveyor device

26

Leakage protection device

12

Working light

27

Warning light

Item

XC125

Max. machining diameter

φ12mm

Main spindle max. travel

Standard

150mm

No guide sleeve

2.5D

Turning tools

Quantity

6

Tool specifications

□10mm

Face machining tools

Quantity

fixed front tools

4

Max. drilling

fixed tools

φ8mm（SUS303）

Max. cutting tap

fixed tools

M8*P1.25（SUS303）

Side Milling Power Tool

Quantity

4

Tool specifications

1×ER16(removable)，3×ER11

Max. drilling(SUS303)

φ6mm(ER16);φ5mm(ER11)

Max. tapping(SUS303)

M6*P1.0（ER16）;M5*P0.8

Max. Milling(SUS303)

φ10mm

Maximum End Milling Slotting

Width 1.5mm, Depth 4mm

Speed

ER16

4,000min-1

ER11

6,000min-1

Power

0.75Kw

Rapid traverse speed

Z1

30m/min

X1

30m/min

Y1

30m/min

Main spindle max. speed

10,000min-1(6,000min-1 Synchronous Guide Bushing)

Spindle positioning accuracy

C-axis control(0.001º)

Spindle power

2.2/3.7kw

Spindle through-hole

φ13mm

Coolant capacity

140L

Coolant motor power

0.4kw

Dimensions (L × W × H)

1890＊1165＊1685mm

Machine weight

1900kg

■Sub-Spindle (SUB) Configuration

Max. machining diameter

φ12mm

Max. ejected part length

80mm

Max. clamping protrusion

50mm

Back processing tools

Quantity

ER16

4(fixed)

Max. drilling

fixed

φ8mm(SUS303)

rotary

φ6mm(SUS303)

Max. tapping

fixed

M8＊P1.25(SUS303)

rotary

M6＊P1.0(SUS303)

Rapid traverse speed

Z2

32m/min

X2

24m/min

Maximum rotation of the second spindle

10,000min-1

Sub-spindle positioning

C-axis control(0.001º)

Sub-spindle power

2.2/3.7kw

Precision

Positioning accuracy

≤0.005

Repeat positioning accuracy

≤0.003

Spindle inner hole run-out

≤0.005

1

CNC system

FANUC 0I-TF PLUS

FANUC

2

Main spindle motor

2.2/3.7kw

Xingchuang

FANUC stator rotor encoder

3

Sub-spindle motor

2.2/3.7kw

Xingchuang

FANUC stator rotor encoder

4

Side milling motor

0.75kW

FANUC

5

Spindle unit

NSK/NTN

High-speed angular contact bearings, P4 grade

6

Ball screw

HIWIN/PMI

Precision ground, C3 grade

7

Screw bearings

NSK

Self-aligning,P4 grade

8

Power head bearings

NSK/KOYO

Angular contact bearings, P4 grade

9

Rolling Guideway

HIWIN/PMI

Precision P-grade

10

Synchronous Guide Bushing

Xingchuang

11

Pneumatic system

Airtac/SMC

12

Lubrication system

Baoteng/Fuheng

13

Cooling system

Luorui

14

Relay module

Shansen

Intelligent electrical panel integration

15

Power protection switch

Schneider

16

Synchronization belt

UNITTA (Japan)

Note: The listed suppliers are primary sources. Component substitutions are permitted due to technical upgrades, provided replacements meet or exceed original quality standards.

1

Machine qualification

1

Set

Includes accuracy test report

2

Machine Tool User Manual

1

Copy

3

System operating instructions

1

Ps

Electronic version

4

System program manual

1

Ps

Electronic version

5

Packing list

1

Set

1.

Background Edit

1 set

2.

Absolute / incremental editor

1 set

3.

X-axis diameter / radius input

1 set

4.

Constant surface speed control

1 set

5.

Direct input of tool offset value

1 set

6.

Single fixed cycle

1 set

7.

Compound Fixed Cycle

1 set

8.

Tip arc compensation

1 set

9.

Metric / inch conversion

1 set

10.

Graphic display

1 set

11.

USB card socket

1 set

12.

Processing time/quantity representation function

1 set

13.

Main/Sub Spindle Cs-axis control \ indexing locking device

1 set

14.

Hand retrace function

1 set

15.

Spindle, sub spindle,side milling in rigid tapping

1 set

16.

Sub spindle ejection apparatus

1 set

17.

Collet chuck means

1 set

18.

Pneumatic clamping mechanism

1 set

19.

Synchronous rotation guide means

1 set

20.

working lamp

1 set

21.

Three-color warning lights

1 set

22.

Conveyor Parts

1 set

23.

Security locks

1 set

24.

transformer

1 set

25.

tools

1 set

26.

Floor shims

1 set
