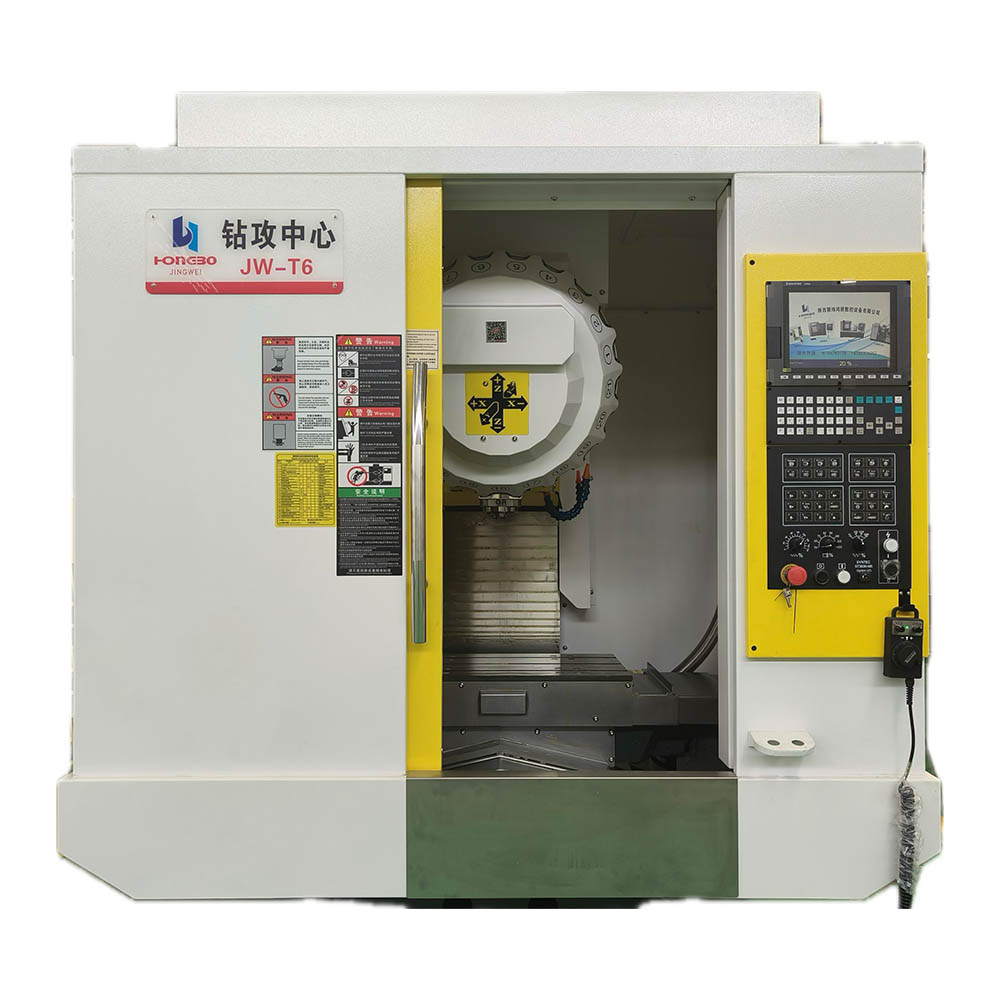

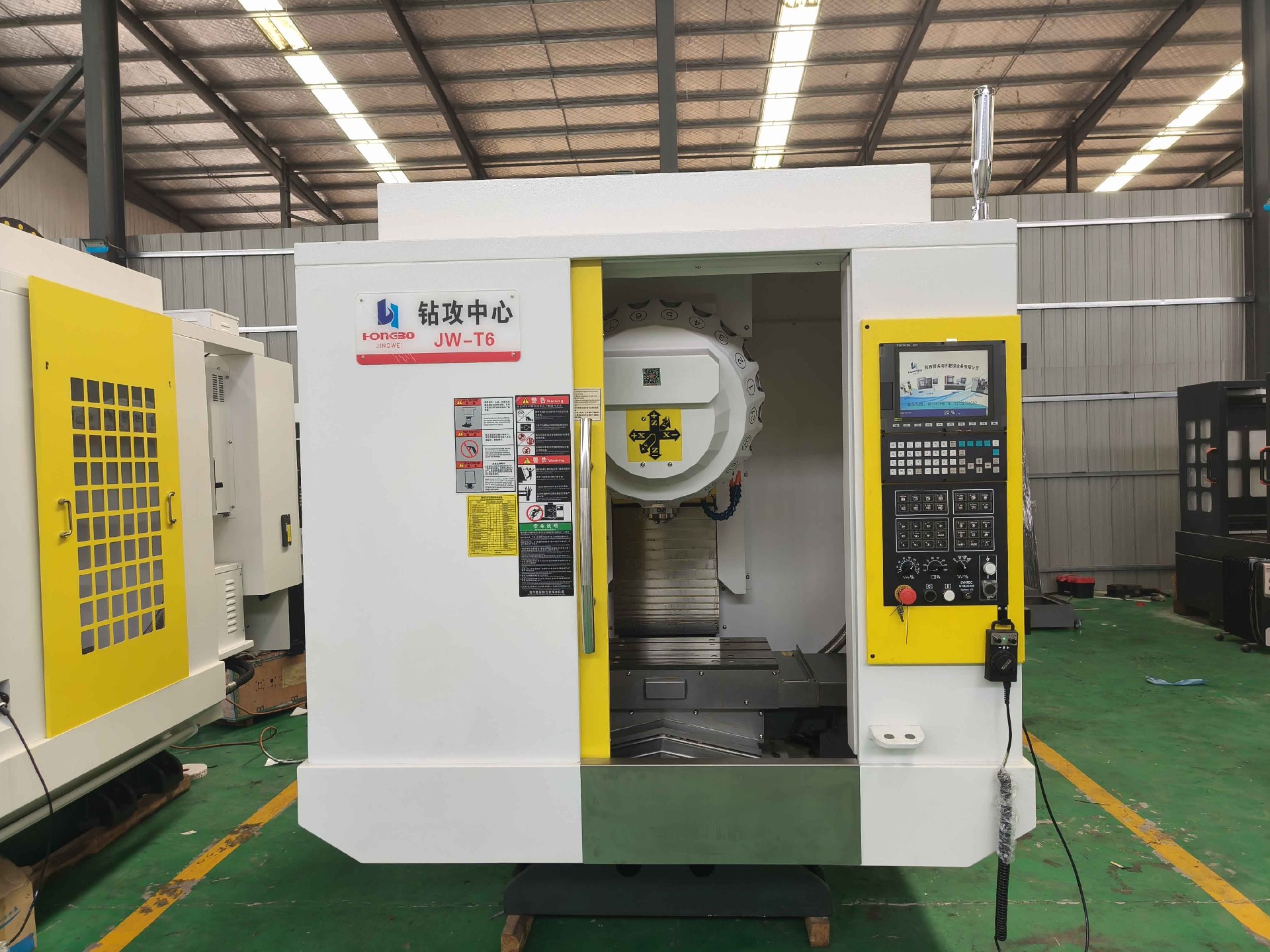

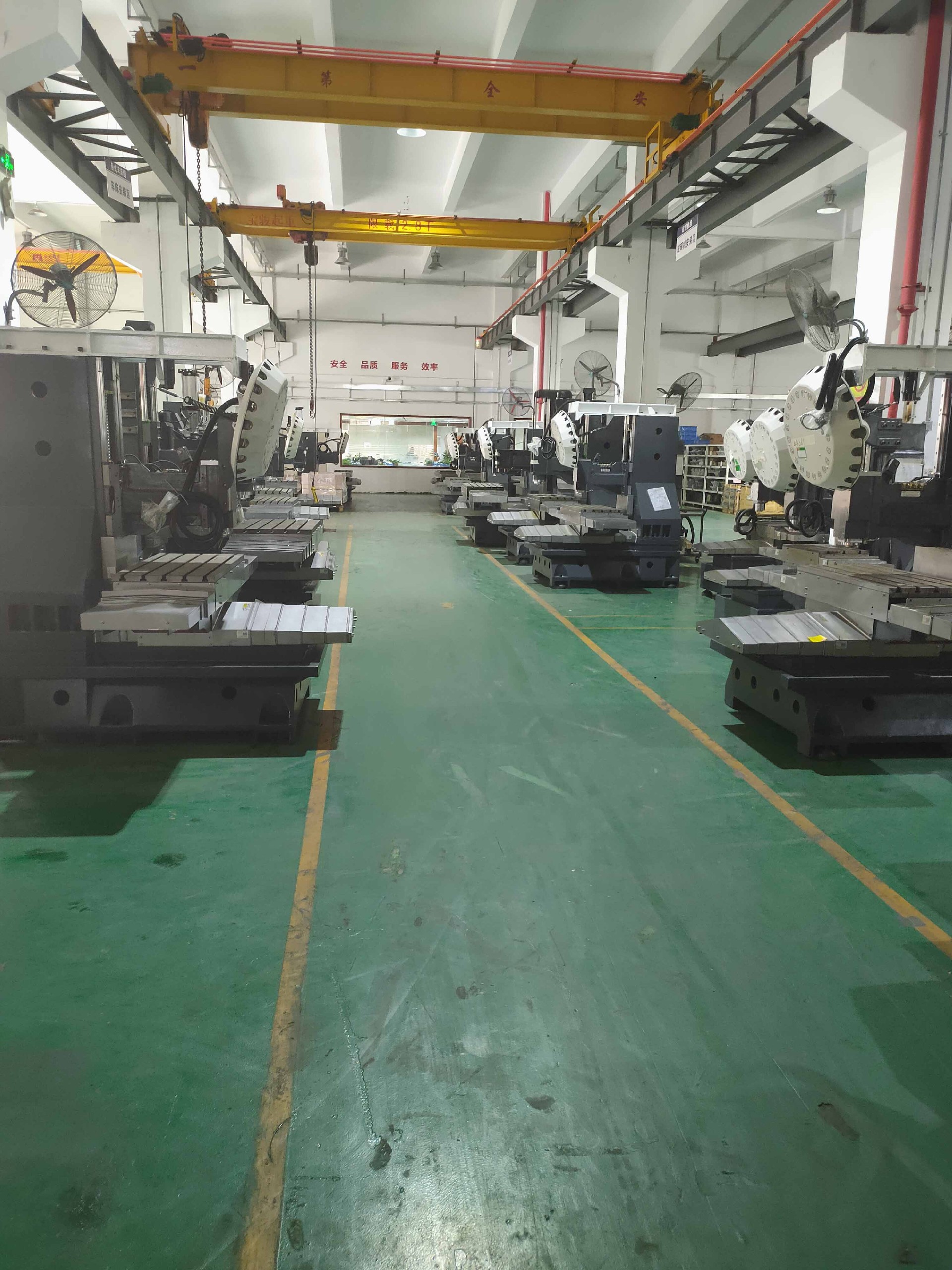

Tapping Center JW-T6

The machine tool base, column, spindle box, bench, and other foundation parts all adopt high-strength disappearing die casting technology to ensure the high stability of the foundation parts.

Online Consultation

Description

1. Main structural features of the machine tool

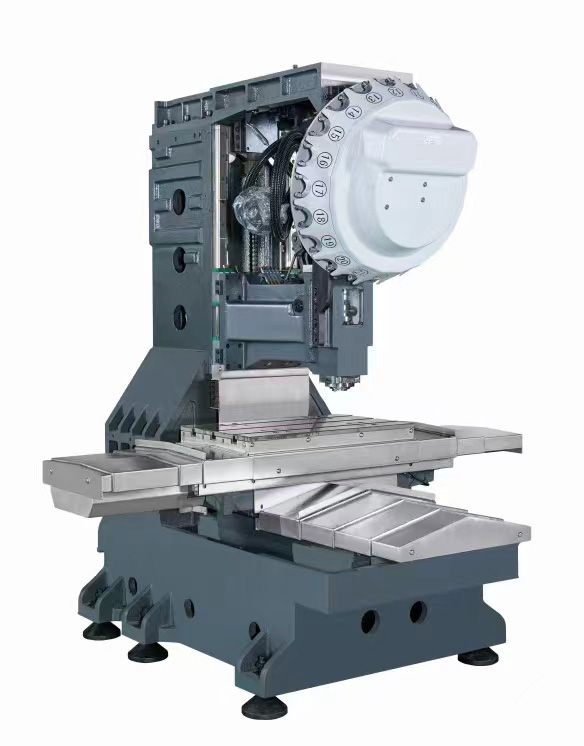

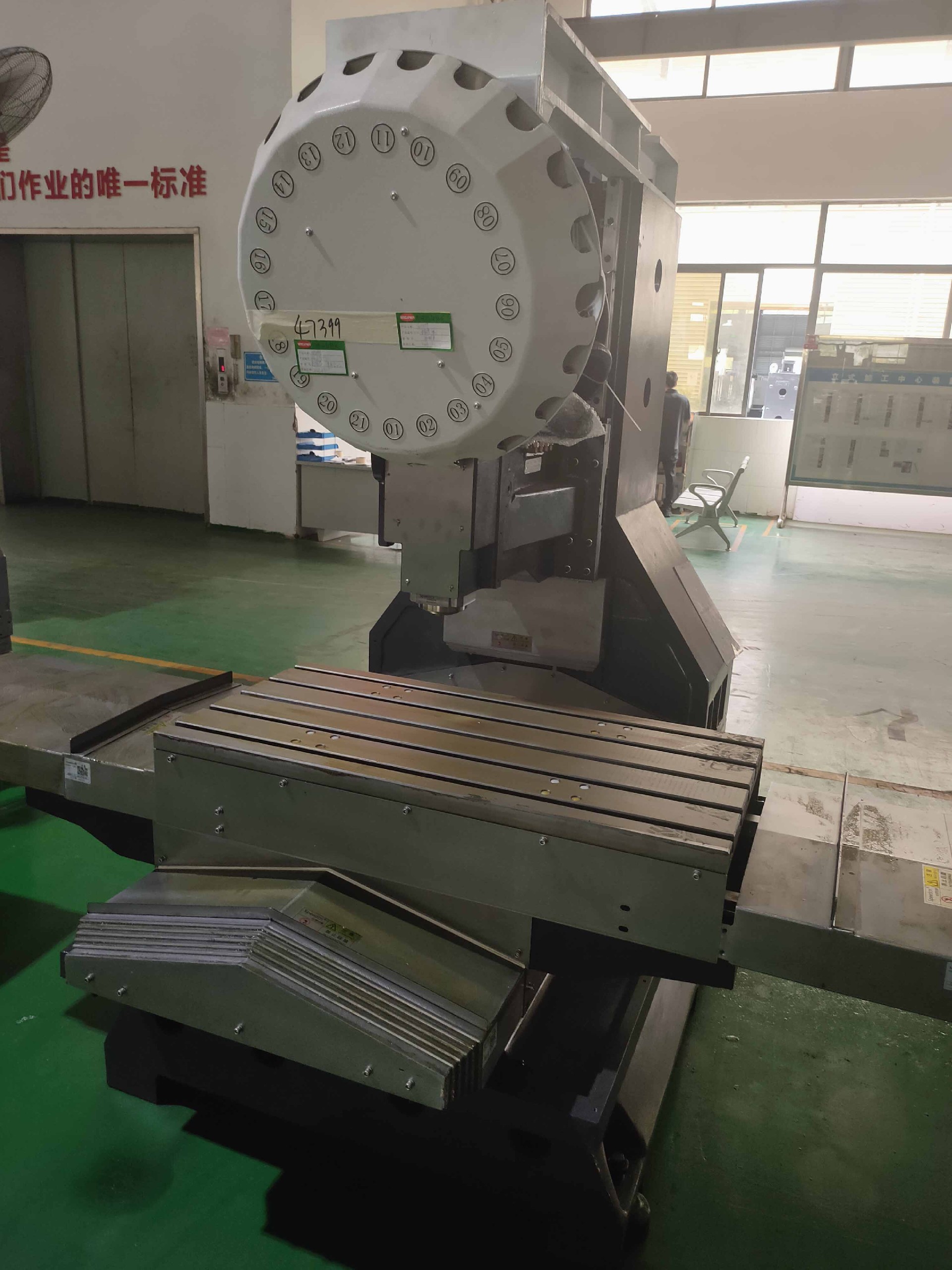

The machine tool base, column, spindle box, bench, and other foundation parts all adopt high-strength disappearing die casting technology to ensure the high stability of the foundation parts. After the dynamic analysis of the machine tool and the finite element analysis, the casting structure makes its geometric structure more reasonable, and the proper collocation of the reinforcement ensures the high rigidity of the foundation parts. Wide and solid machine tool base, full load support design, and the structure is in line with the advanced design concept of material mechanics, which can ensure the heavy load capacity when processing.

High-speed and high-rigid spindle unit is combined with servo spindle motor; X / Y / Z adopts high-torque servo motor. X / Y / Z adopts Taiwan high precision high strength ball screw with ball screw special pair bearing and high precision inlet lock.

2、Main technical parameters

project		parameter
Main technical parameters	tablesize mm	700*420
	Workbench T-type slot	3-14*125
	Maximum load of the workbench(kg)	300
Table Travel	X-axis Stroke（mm）	600
	Y-axis Stroke（mm）	400
	Vertical stroke（mm）	350
principal axis	Spindle center to pillar guide rail distance mm	420
	Distance from spindle end surface to working surface mm	135-635
	Spindle handle	BT30
	main shaft speed(rpm)	20000
	Spindle motor power(Kw)	3.7
servo motor	X.Y.Z Motor-motor power（KW）	1.5 1.5 2.0
servo motor	X.Y.Z Motor connection mode	direct connection
knife tool	Knife library capacity (handle)	21 The
	Maximum tool weight Kg	3
	Maximum tool length mm	250
	Pull nail model	BT30 45°
	The blade handle model	BT30
quick travel	quick travel m/min	36-36-36
quick travel	Cut into give speed m/min	12
Machine tool accuracy	X/Y/Z Repeat positioning accuracy（mm）	±0.005/300
Machine tool size	(L×W×H)mm	1900×2100×2600
Controller		SYNTEC 220-5
Machine tool weight	(t)	3.5
Electrical capacity	KVA	15

3. Primary configuration list (T6)

Serial number	name	brand	place of production	remarks
1	Resin sand castingscastings	Self-produced	Shaanxi
2	principal axis	Speedcn	Taiwan, China	BT30
3	Ball rod and precision locking screw	THK	Japan
4	ball screw	THK	Japan	3216
5	roller guide	THK	Japan	30/30/35
6	bearing	NSK/FAG	Germany
7	Lube oil system	HERG/BAOTN	Taiwan, China
8	water pump	WEISEN	Wen Zhou
9	Spindle drive	LYNUK	Shanghai
10	heat exchanger	REID INDUSTRY	Guang Dong
11	pneumatic system	AIR TAG	Taiwan, China
12	Oil cold machine	REID INDUSTRY	Guang Dong
13	control system	SYNTEC	Taiwan, China
