Small turning lathe CNC0640

CNC0640 is a newly designed high-precision, high-speed, high-stability CNC Turning lathe with a cost-effective solution for the Automobile, Bearings, Fasteners, Brass works, and Glass industry.
-Front and rear spindle bearings are high precision ball bearings angular contact bearings, good stability at work, carrying a large load.

Online Consultation

Description

1. Introduction

CNC0640 is a newly designed high-precision, high-speed, high-stability CNC Turning lathe with a cost-effective solution for the Automobile, Bearings, Fasteners, Brass works, and Glass industry.

-Front and rear spindle bearings are high precision ball bearings angular contact bearings, good stability at work, carrying a large load.

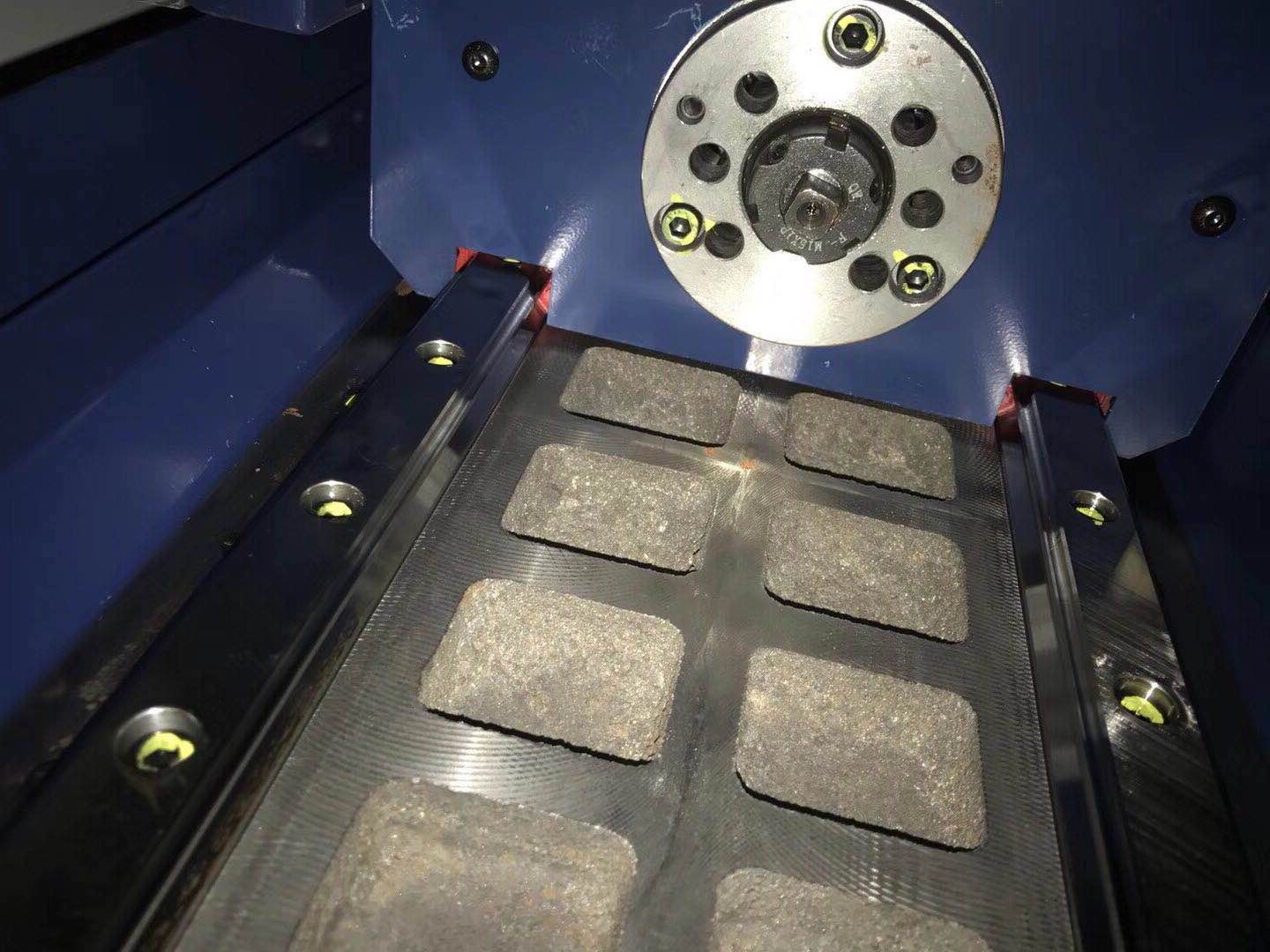

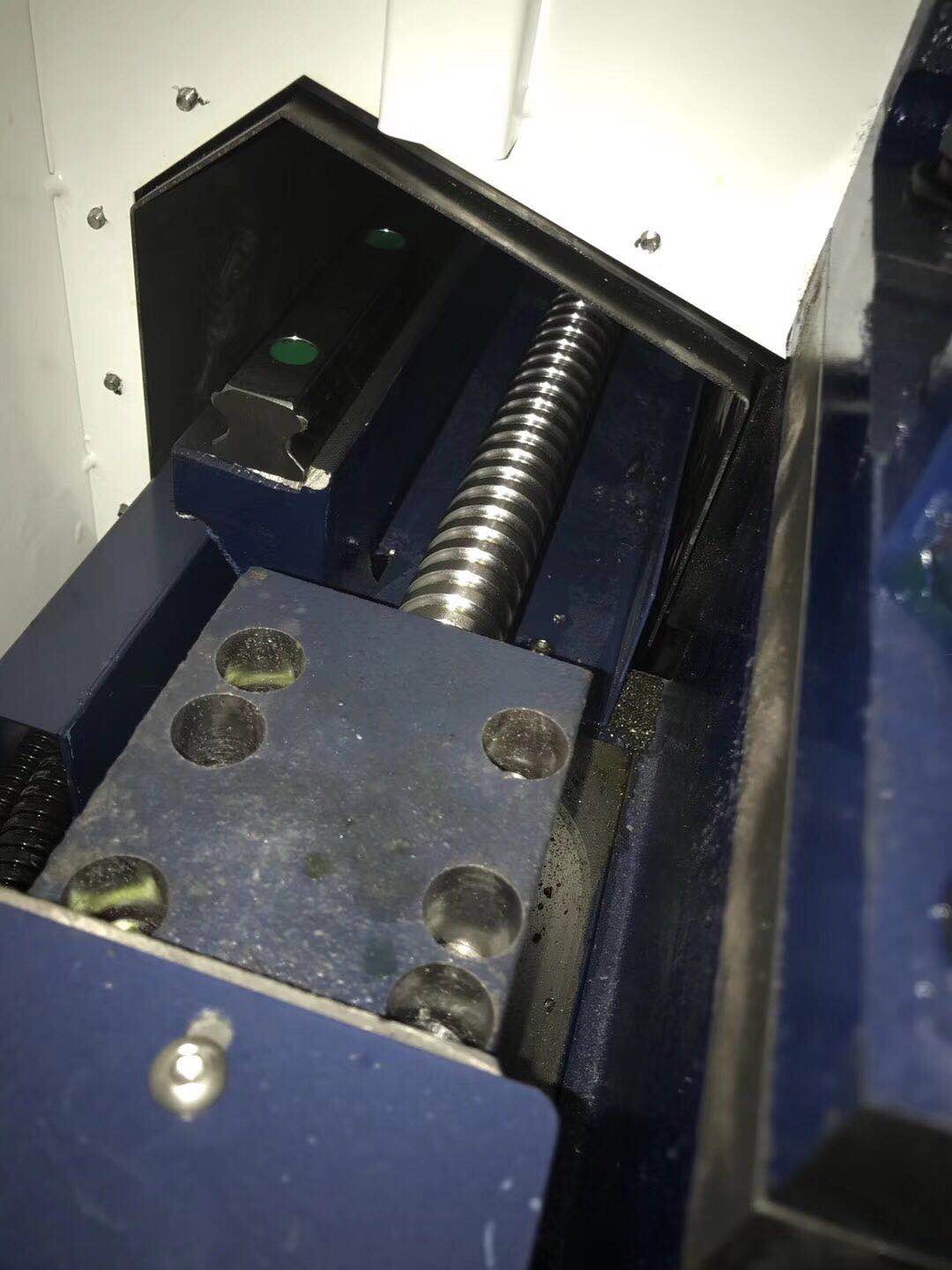

-X-axis with four-point line/Z-axis screw with a central three-point structure design to ensure that the rail in the work is more stable and unaffected by the side force

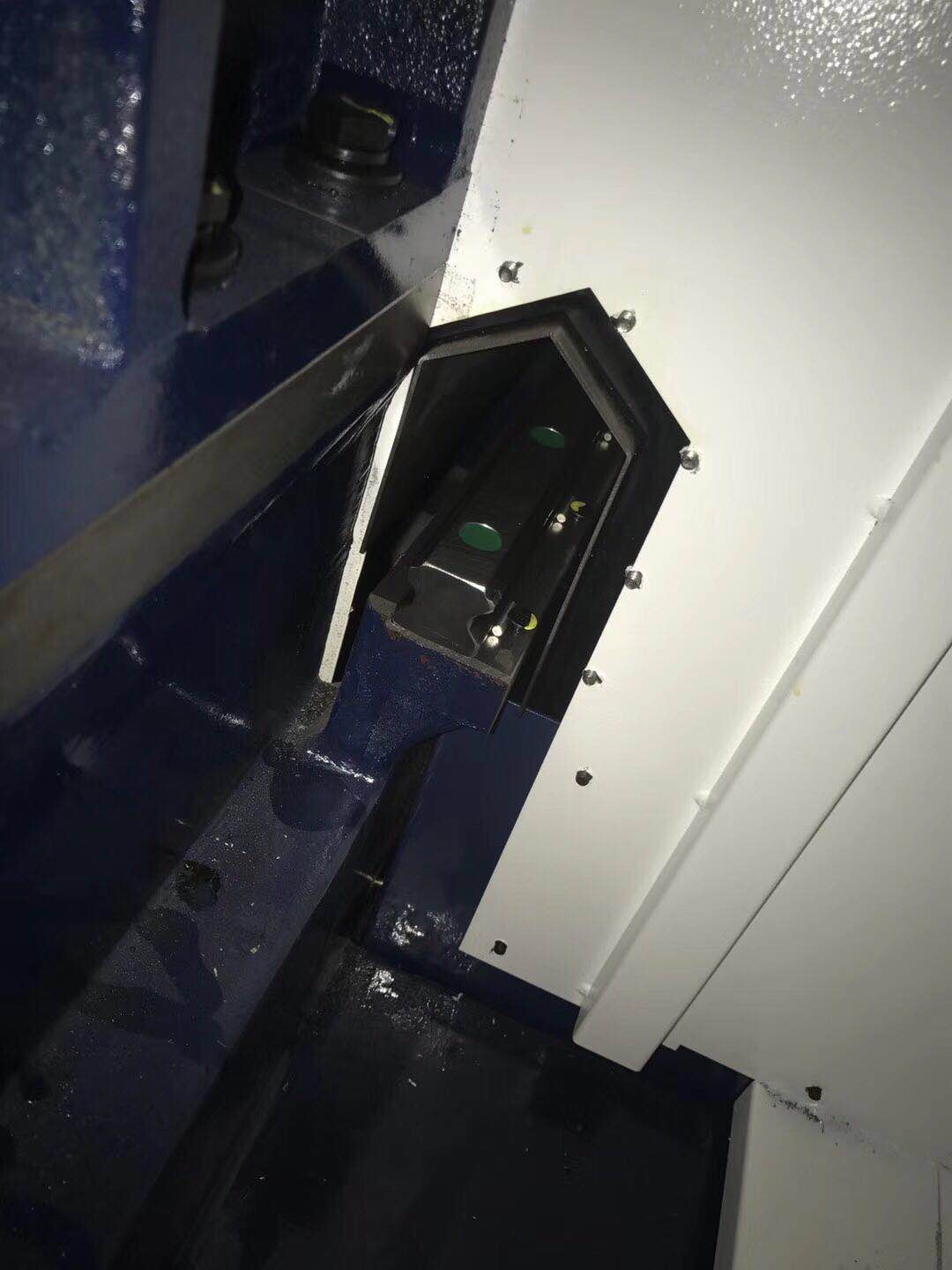

-Z-rail with a fully enclosed design, the machine's work can better protect the rails.

2. Specification

CAPACITY
Max. Swing over bed	350 MM
Max. Working length	300 MM
X axis rapid move	12000 mm/min
Z axis rapid move	18000 mm/min
X axis stroke	300 mm
Z axis stroke	300 mm
SPINDLE
Standard spindle	A2-5
Spindle bore	Φ28mm
Spindle servo brand	GSK
Motor power	3.7 kw
Spindle speed 0-4000	0-4000 r.p.m
Controller	GSK 980TC3
Servo motor	Absolute
Clamping method	Hydraulic Chuck
Spindle structure	Spindle unit
Spindle motor	3.7KW Servo motor
Liner guides	HIWIN/PMI Taiwan
X axis ball screw	6MM
Z axis ball screw	10MM
PRECISION
ROUNDNESS	0.003 mm
CYLINDRICITY	0.003/100 mm
SURFACE ROUGHNESS	Ra<0.003 mm
REPEATED POSITIONING ACCURACY	0.005

3. Standard accessories

Foot switch	1
Emergency switch	1
Ratio switch	1
Hand wheel	1

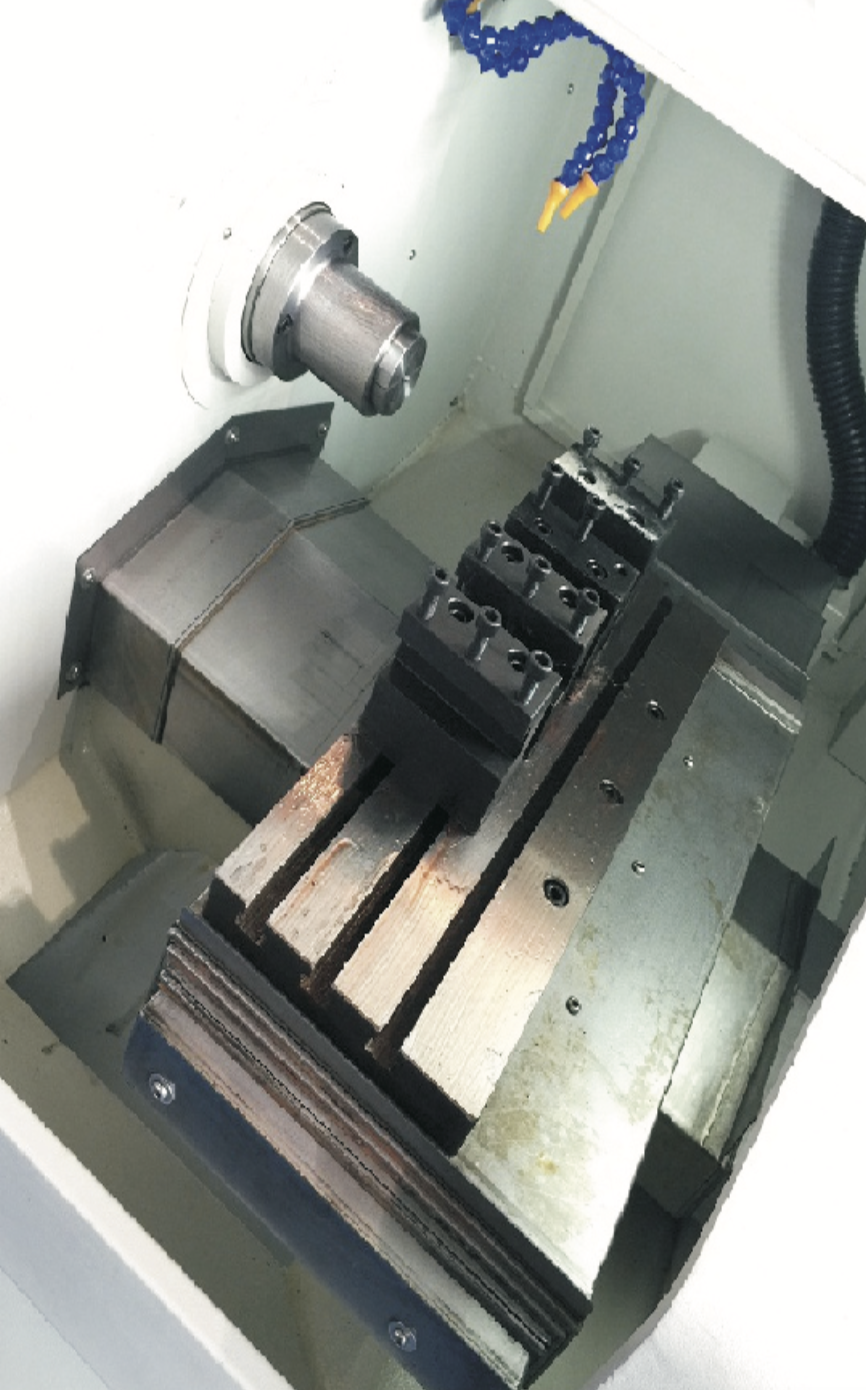

Turning tool holder blocks	2
Boring tool holder blocks	2
Hydraulic power-off protection function	1
Panel AC	1

4. Special accessories

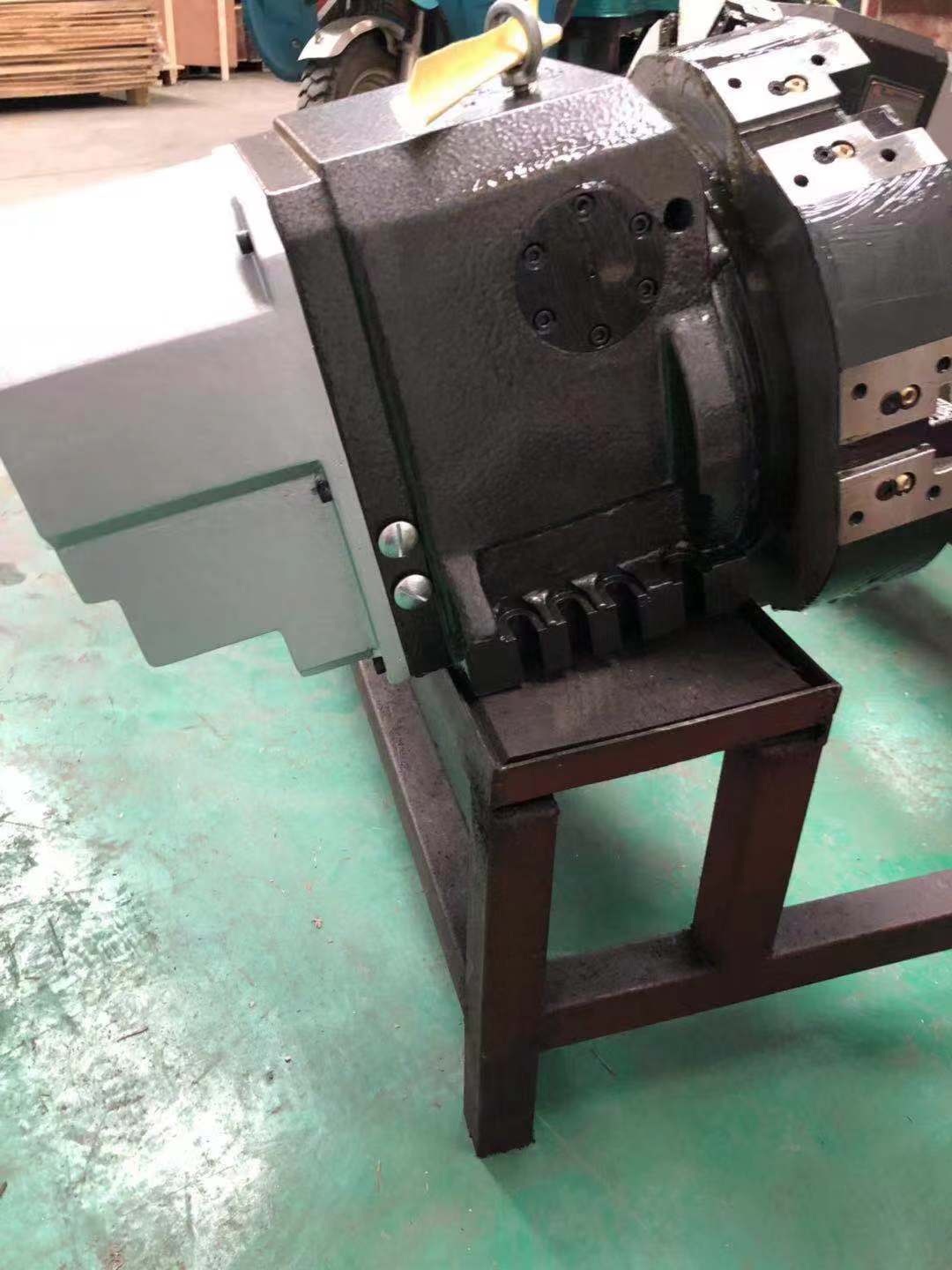

4/6/8 station electrical/hydraulic turret	1
Big spindle capacity option	1
Fly cutter	1
Spindle lock and Index function	1

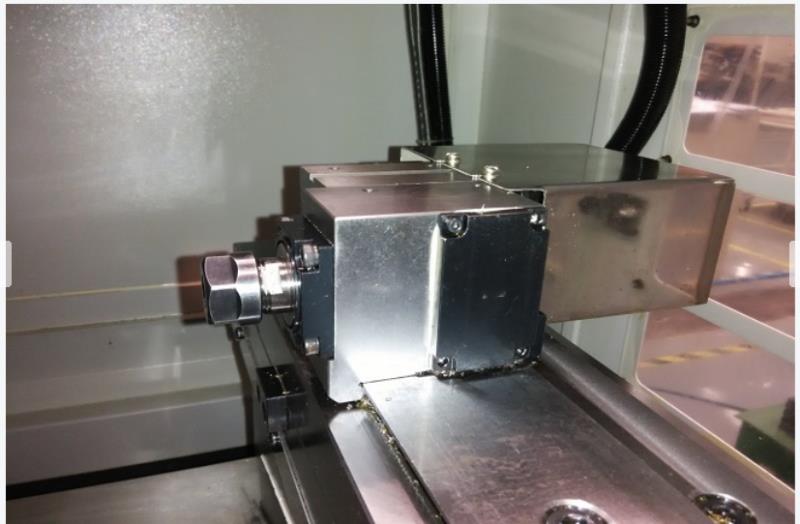

Radial live tool	1
Axial live tool	1
Controller option	1
Oil bath bar feeder 3m	1
Hydro-dynamic automatic bar feeder 3	1

5. Controller

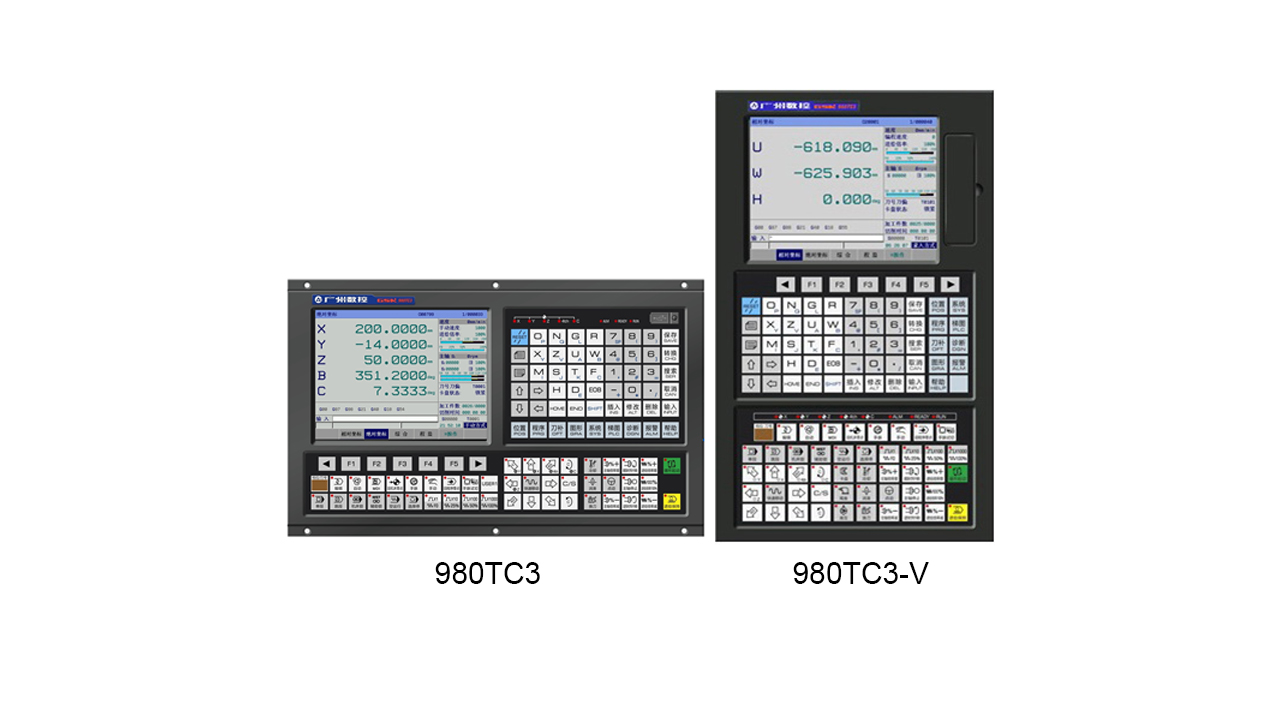

GSK 980-TC3

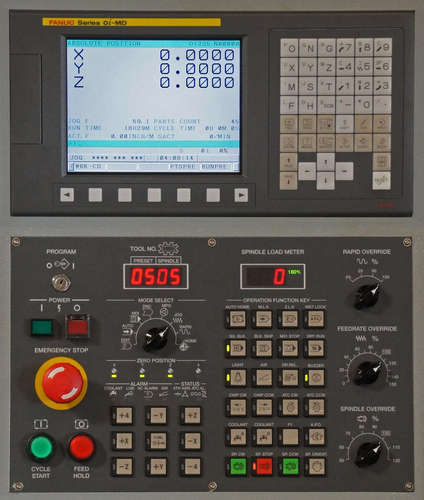

FANUC 0I MATE MF

SIEMENS 808D

SYNTEC
