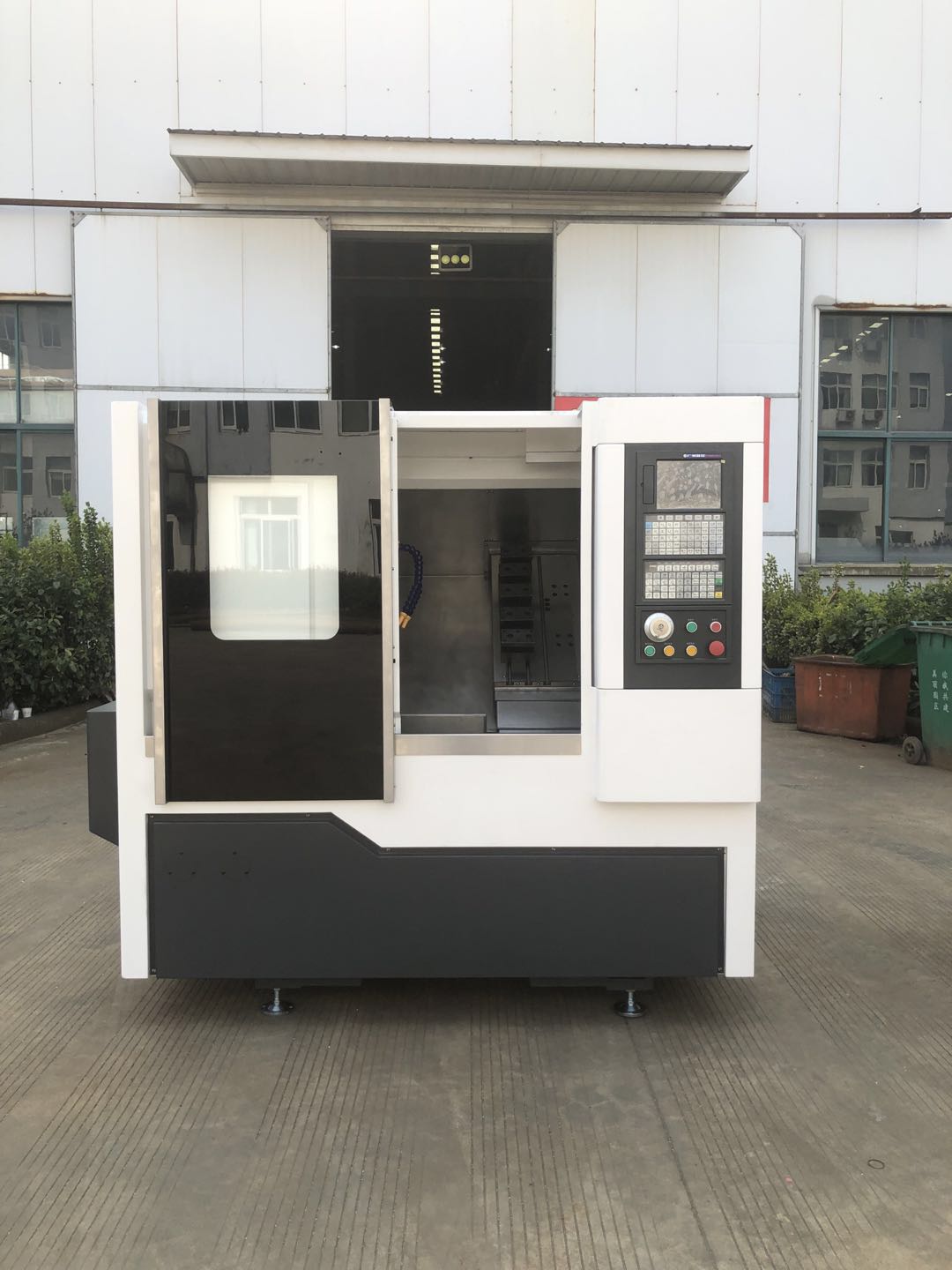

Small turning lathe CNC350

CNC350 is newly design high precision, high speed, high stability CNC Slant bed Turning lathe, with cost effective solution for Automobile, Bearings, Fasteners ,Brass works, Gland industry.
-Front and rear spindle bearings are used high precision ball bearings angular contact bearings, good stability at work, carrying a large load.

Online Consultation

Description

1. Introduction

CNC350 is newly design high precision, high speed, high stability CNC Slant bed Turning lathe, with cost effective solution for Automobile, Bearings, Fasteners ,Brass works, Gland industry.

-Front and rear spindle bearings are used with high precision ball bearings angular contact bearings, good stability at work, carrying a large load.

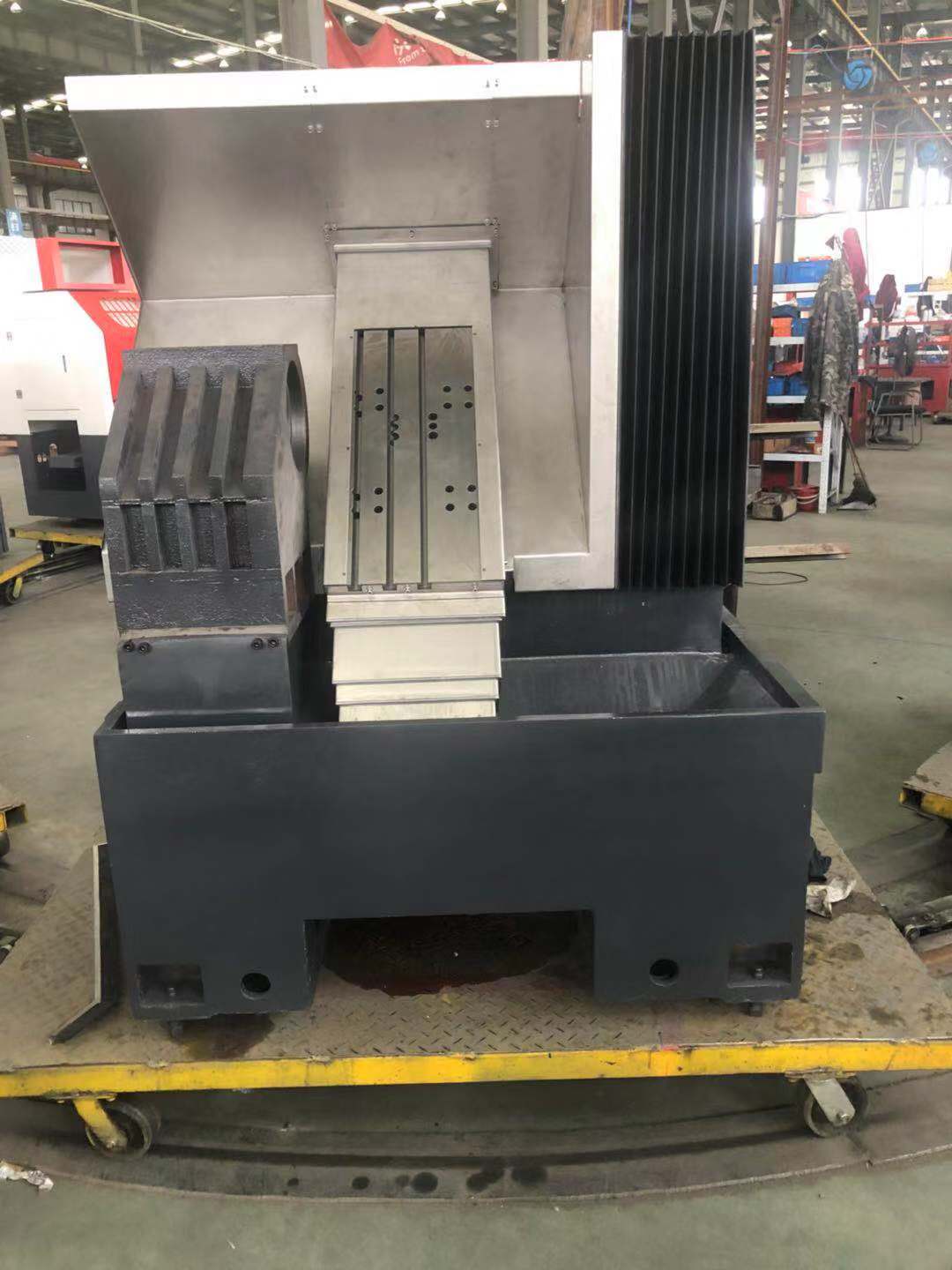

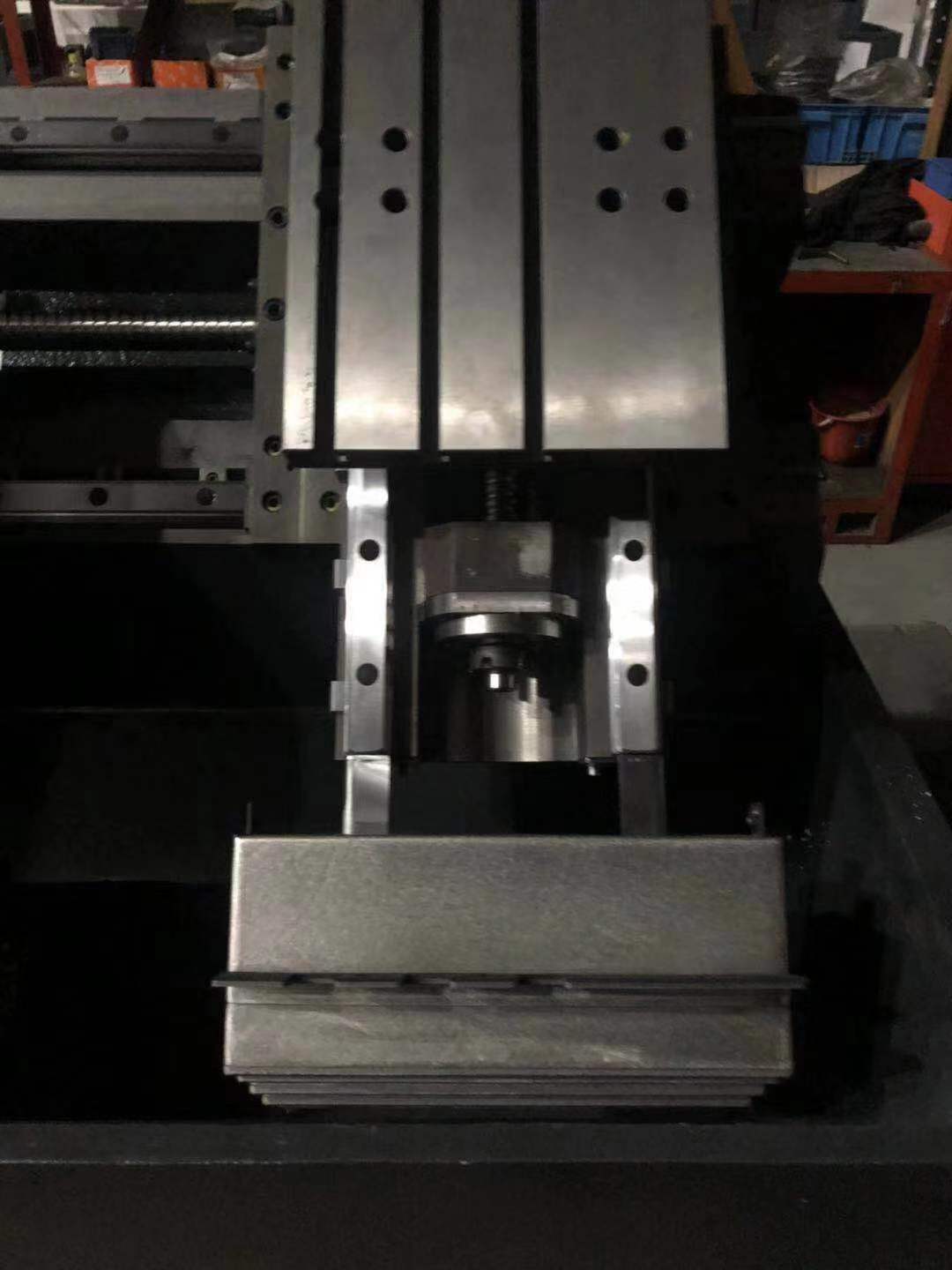

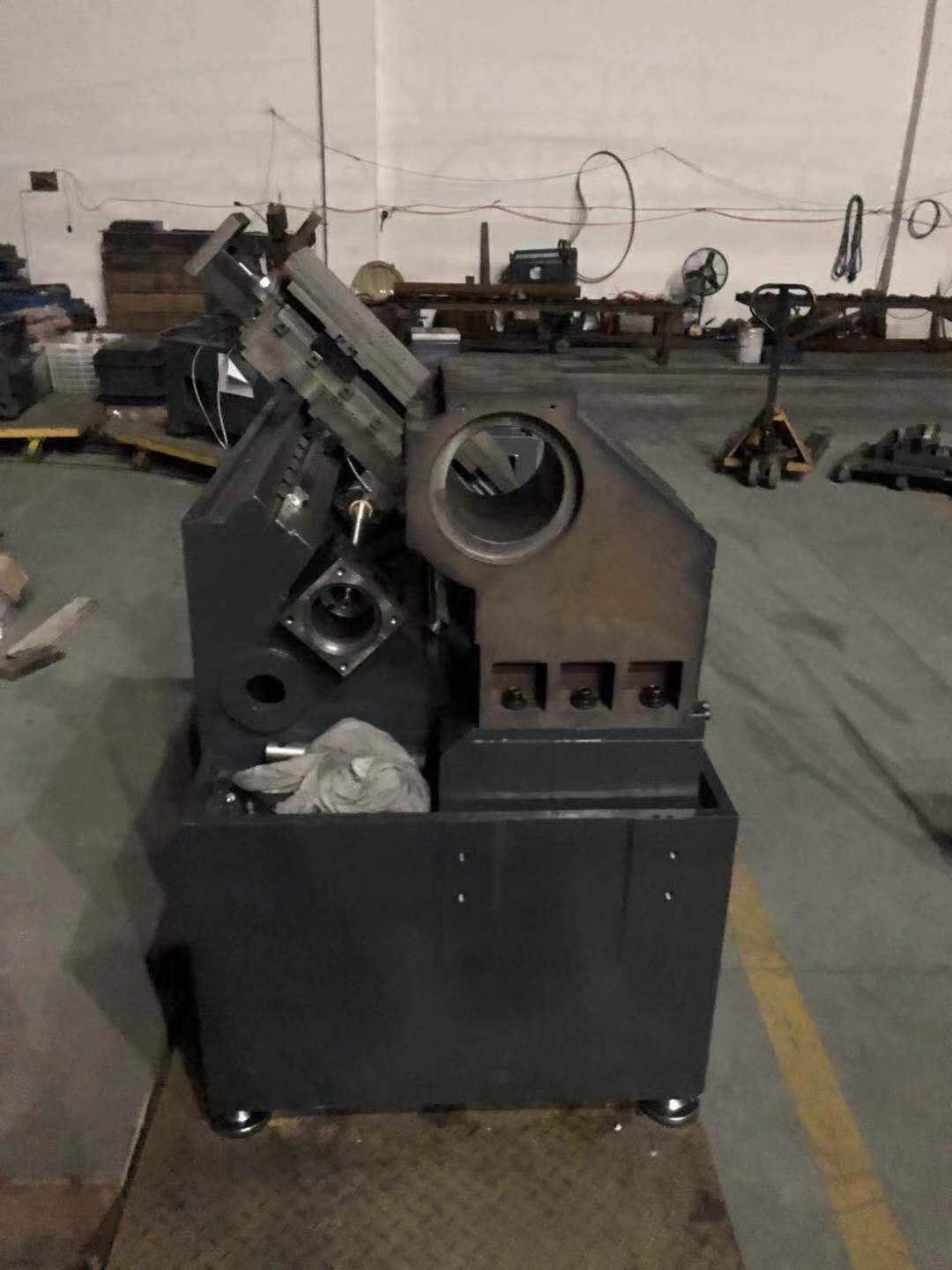

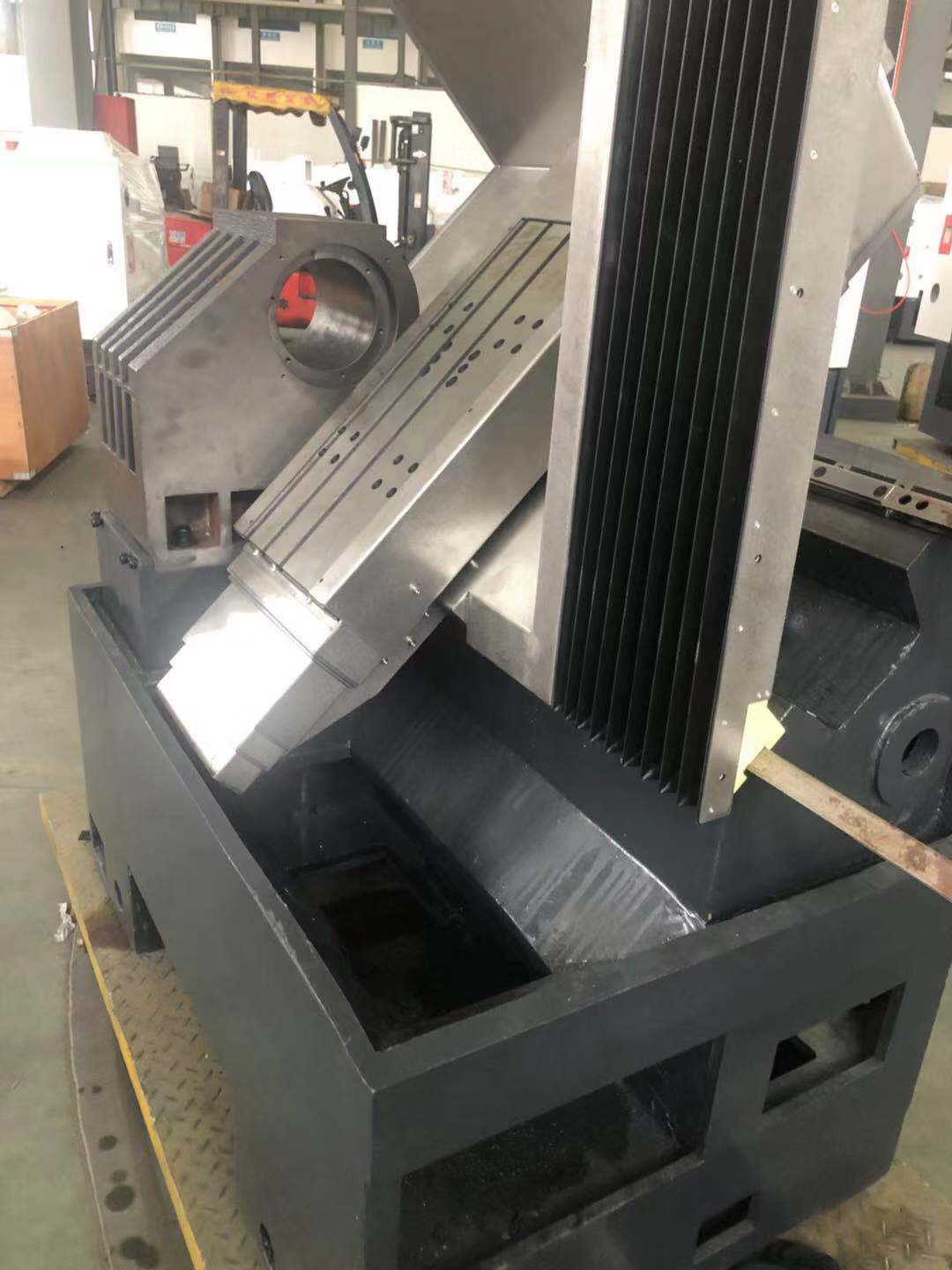

-X-axis with four-point line/Z-axis screw with a central three-point structure design to ensure that the rail in the work is more stable and unaffected by the side force

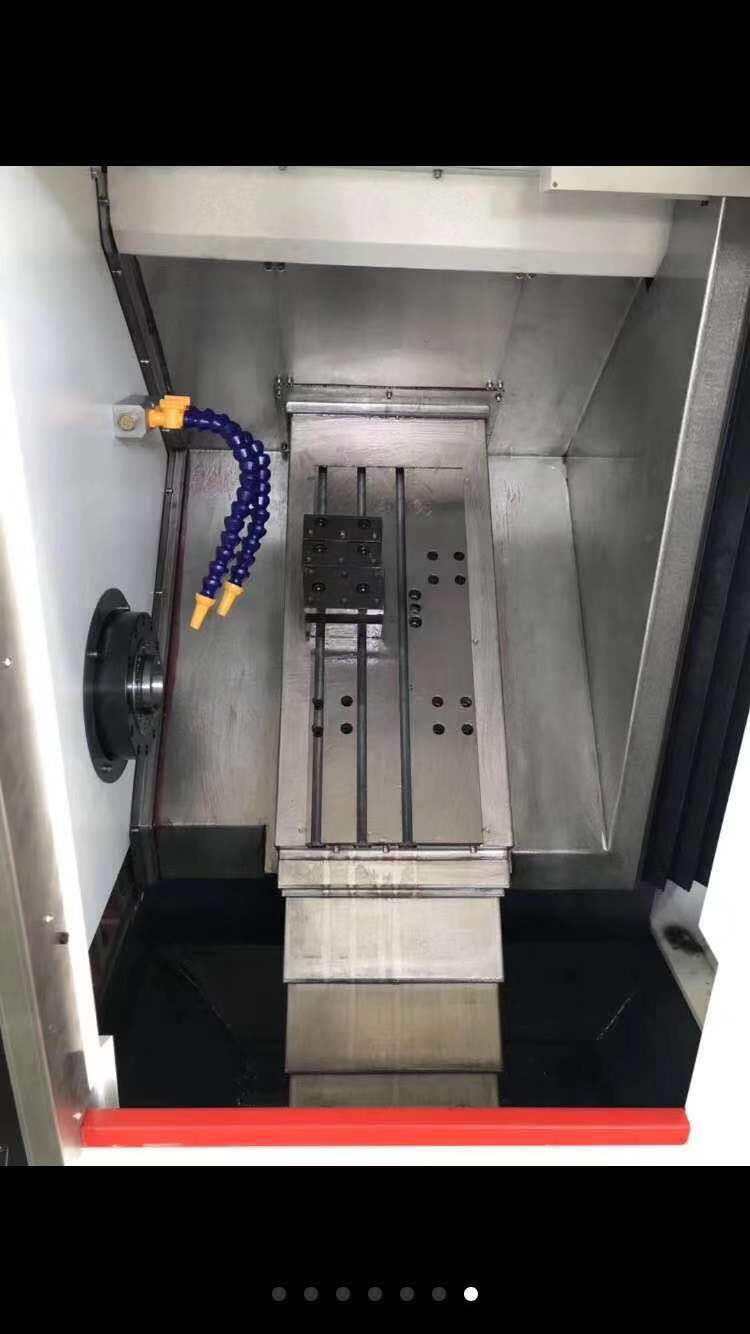

-Z-rail with a fully enclosed design, the work of the machine can better protect the rails.

2. Specification

Item	Cnc350
Max Swing over bed	400MM
Max working length	300MM
Spindle speed	0-4000r.p.m
Spindle bore	28mm
X axis rapid move	32000mm/min
Z axis rapid move	32000mm/min
X axis stroke	350MM
Z axis stroke	400mm
Motor power	3.7KW-5.5KW
Machine dimension	210015701650
Machine weight	2000kg

Item	CNC350
Roundness	0.003mm
Cylindrical	0.003/100mm
Surface roughness	Ra<0.003mm
Repeated positioning accuracy	0.005

Standard accessories

CNC350	Standard accessories
Controller	GSK 980TC3
Servo motor	Absolute
Collet method	Hydraulic chuck
Spindle structure	Spindle unit
Spindle motor	3.7KW Servo motor
Liner guides	HIWIN Taiwan
X axis ball screw	10MM
Z axis ball screw	10MM

Foot switch	1
Emergency switch	1
Ratio switch	1
Hand wheel	1
Turning tool holder blocks	2
Boring tool holder blocks	2
Hydraulic power-off protection function	1
Panel AC	1

3. Special accessories

4/6/8 station electrical/hydraulic turret	1
Big spindle capacity option	1
Fly cutter	1
Spindle lock and Index function	1
Radial live tool	1
Axial live tool	1
Controller option	1
Oil bath bar feeder 3m	1
Hydro-dynamic automatic bar feeder 3	1

4. Controller

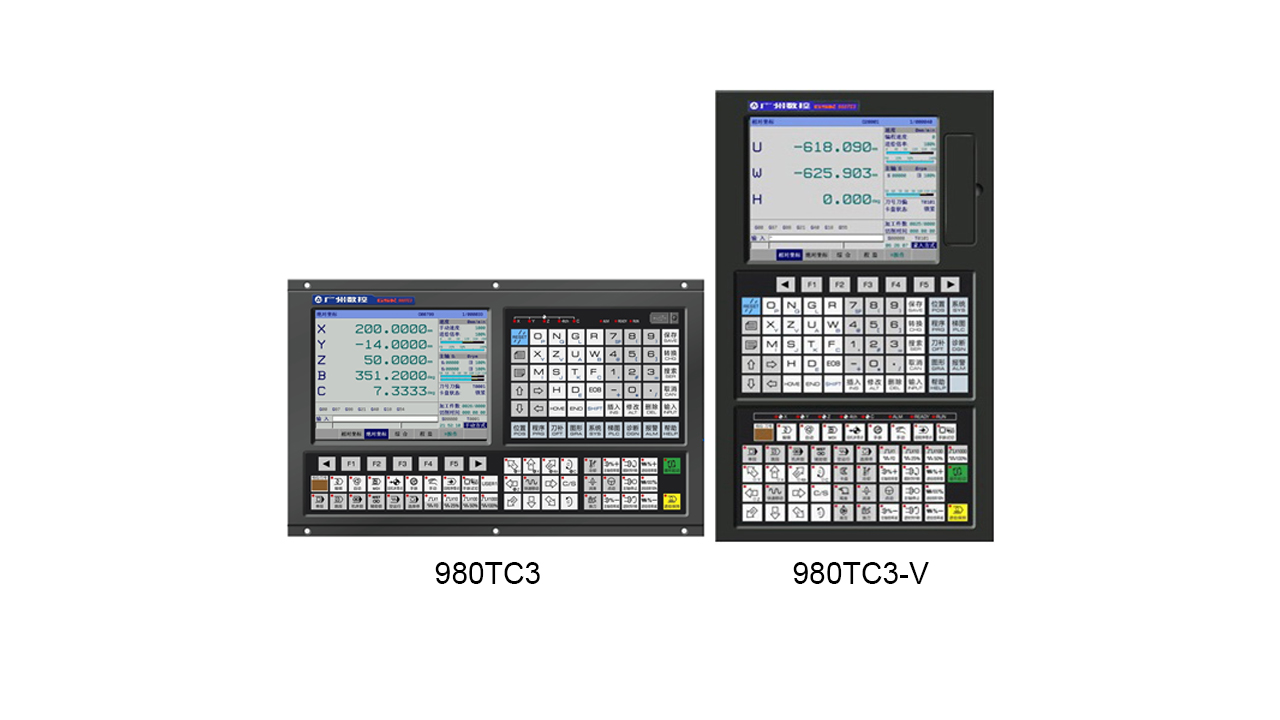

GSK 980-TC3

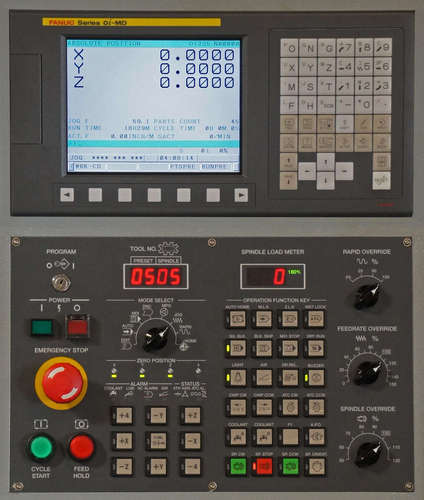

FANUC 0I MATE MF

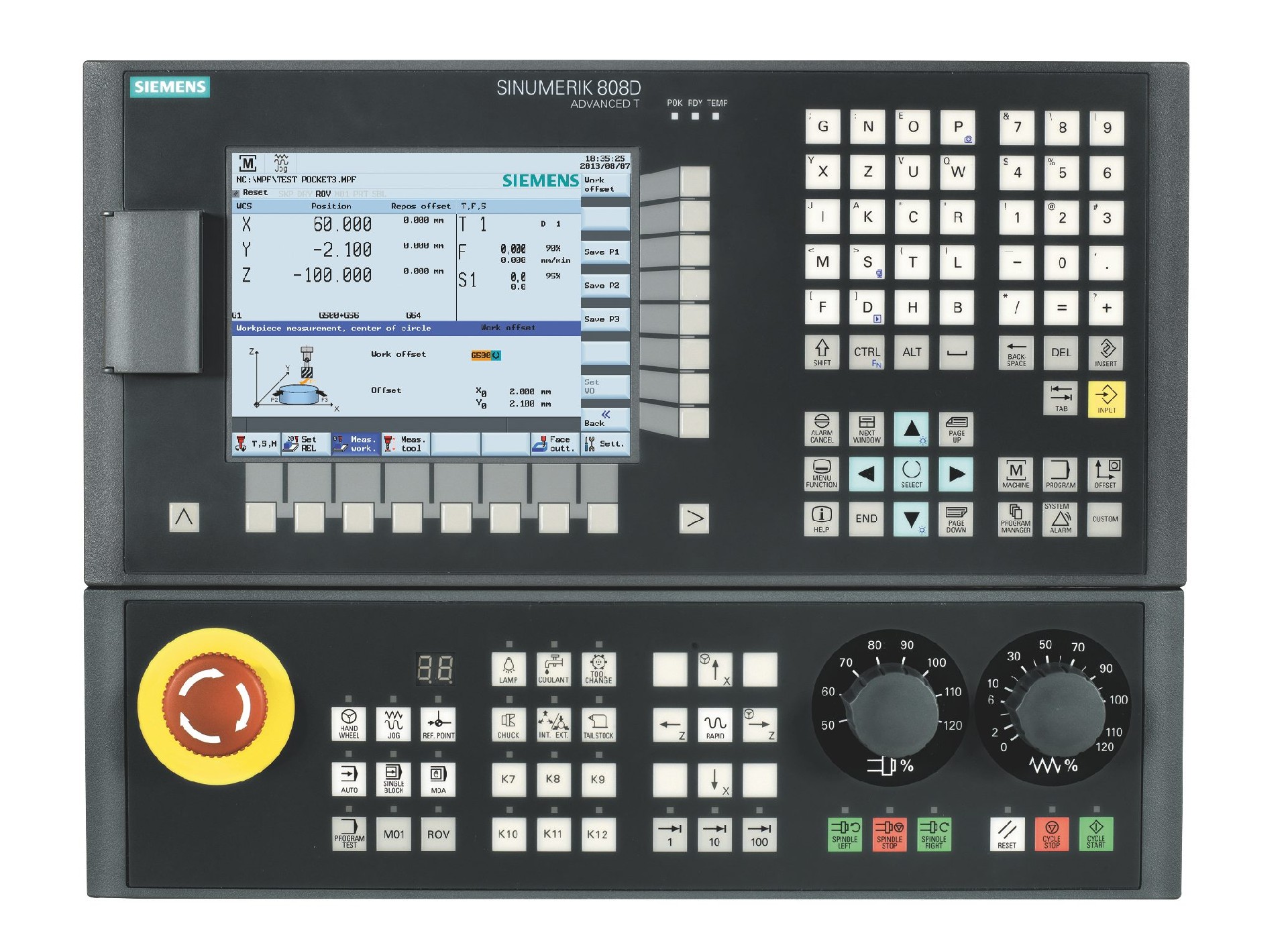

SIEMENS 808D

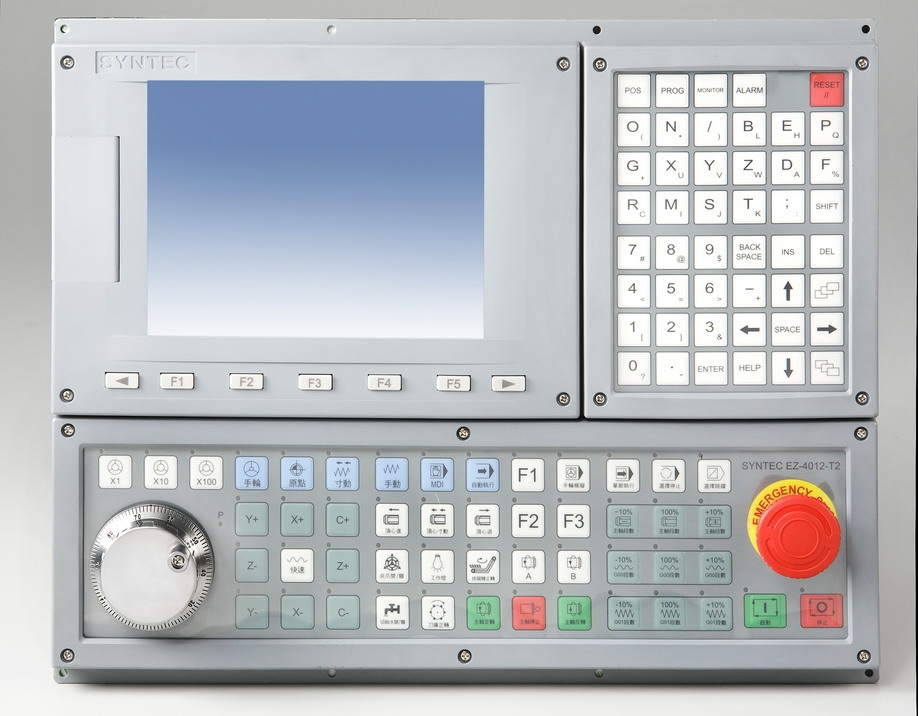

SYNTEC
