Swiss type lathe SX325

-Cooperated of Korean HJM technology 32mm through hole double spindle CNC machine tools,the choice of high-power servo motor,torque,strong power
-High rigidity heavy cutting;
-Dual-channel system efficient processing;
-Shafts equipped with imported high-precision Linear guide,ball screw and precision bearings;

Online Consultation

Description

1.Introduction
-Cooperated of Korean HJM technology 32mm through hole double spindle CNC machine tools,the choice of high-power servo motor,torque,strong power
-High rigidity heavy cutting;
-Dual-channel system efficient processing;
-Shafts equipped with imported high-precision Linear guide,ball screw and precision bearings;
Arranged platoon reasonable,compact tool layout,flexible tool configuration;
-A clamping 280mm,automatic processing of all the completed operations;Set of switching functions;Widely used in medical equipment,hardware tools,textile machinery,electronic communications,aerospace and other industries precision parts processing.

2.Specification

Description				unit	specification
Processing capacity	Max machining diameter			mm	￠32
	A maximum clamping length of the processing			mm	280

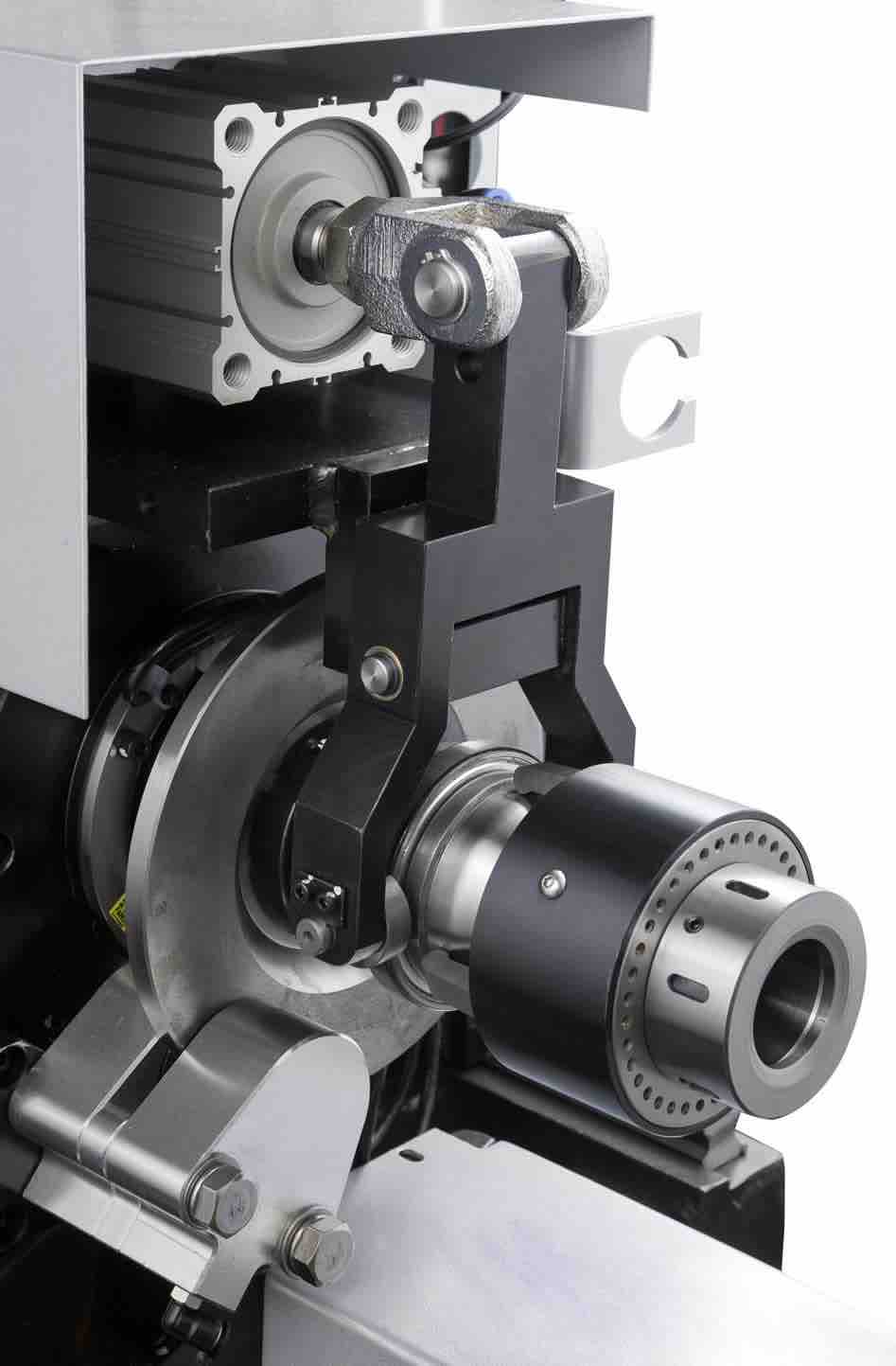

	Max. spindle speed			rpm	10000
	Max. sub spindle speed			rpm	8000
	Horizontal (rotating) power tool			rpm	6000
	Cs axis indexing accuracy			°	1/1000（0.001）
Traverse Rate	Maximum travel	X1 axis		mm	60
		Y axis		mm	340
		Z1 axis		mm	280
		X2 axis		mm	400
		Z2 axis		mm	265
	Rapid Traverse Rate	X1 axis		m/min	24
		Y/Z1/X2/Z2 axis		m/min	32

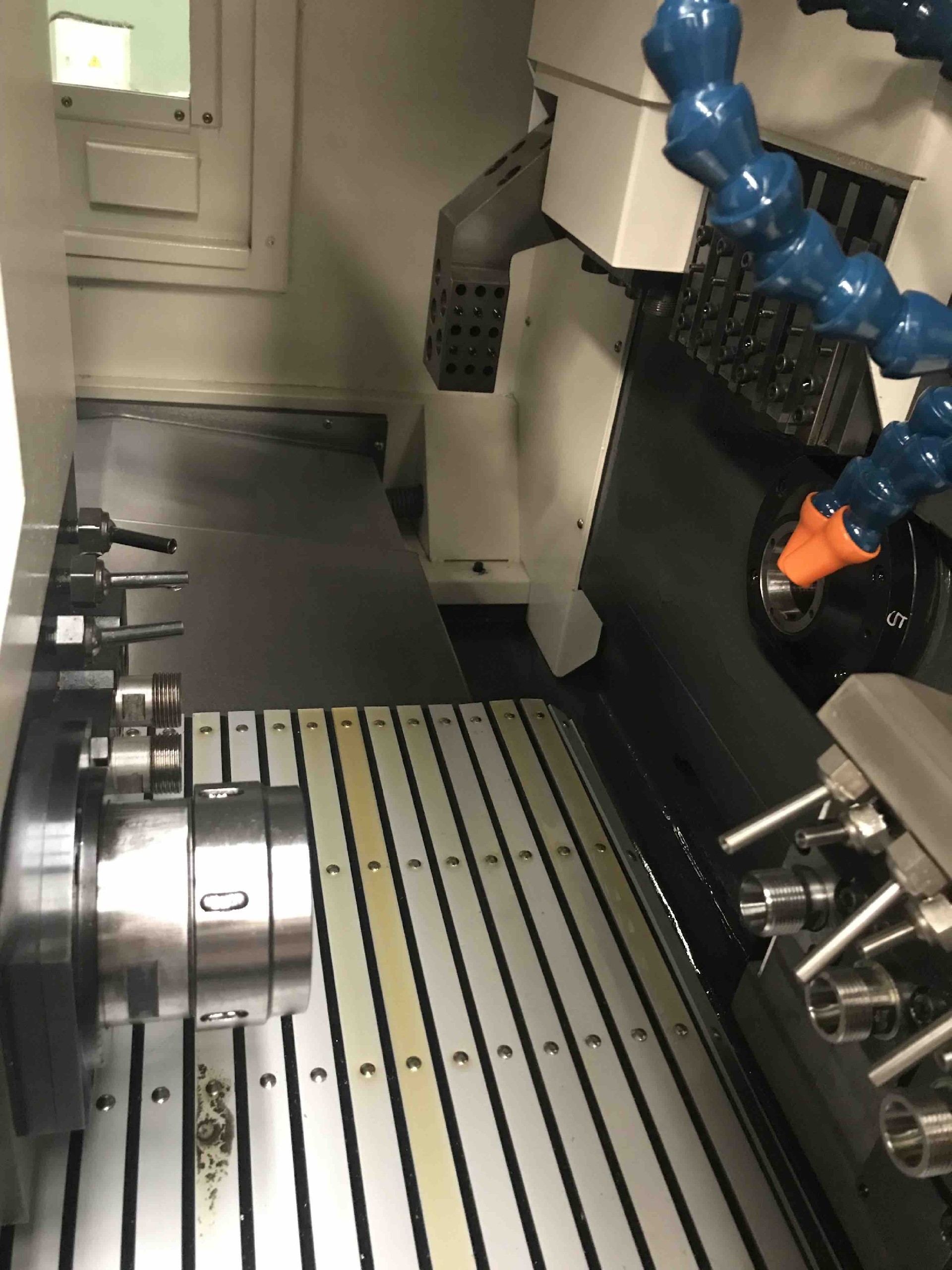

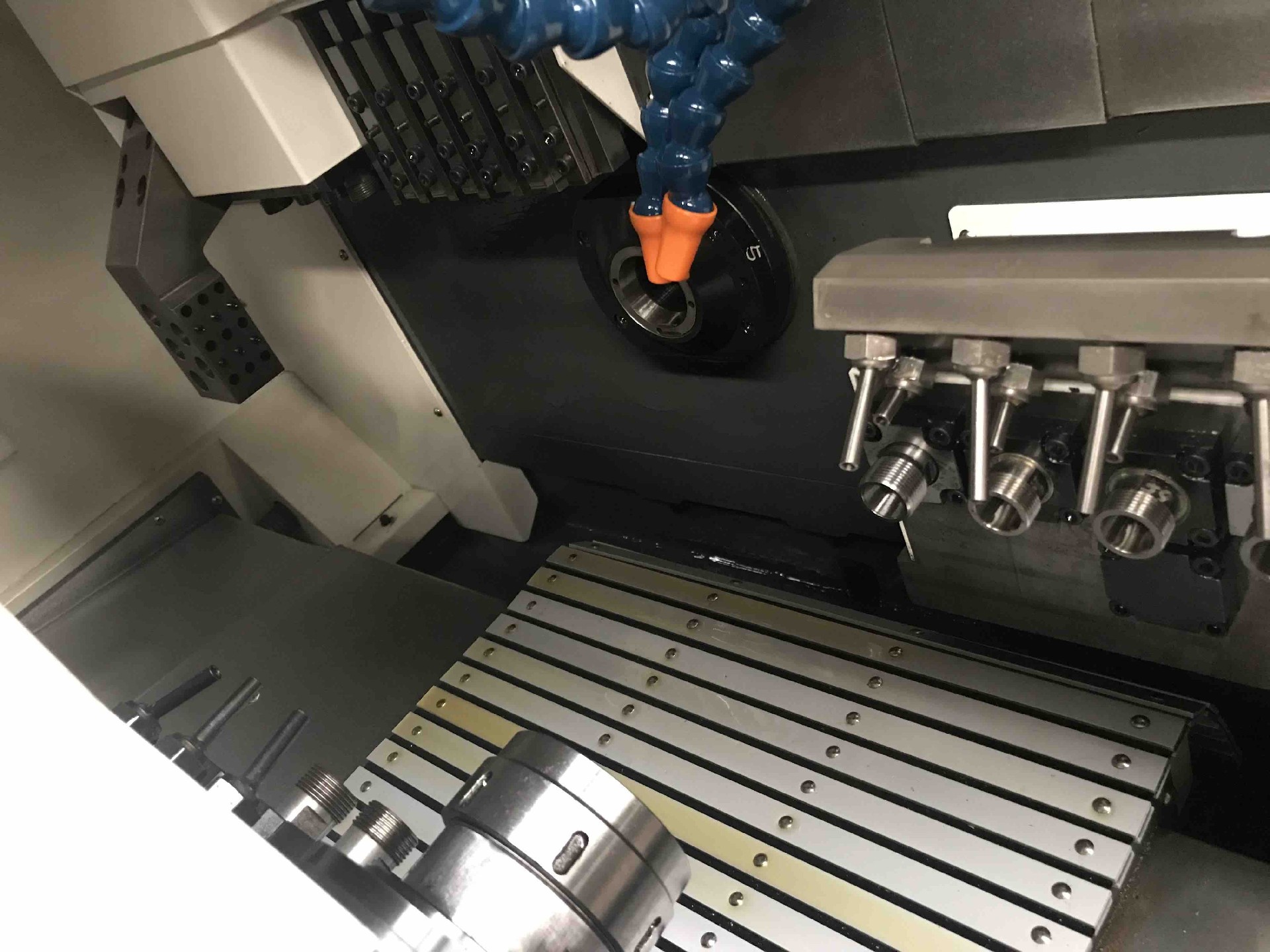

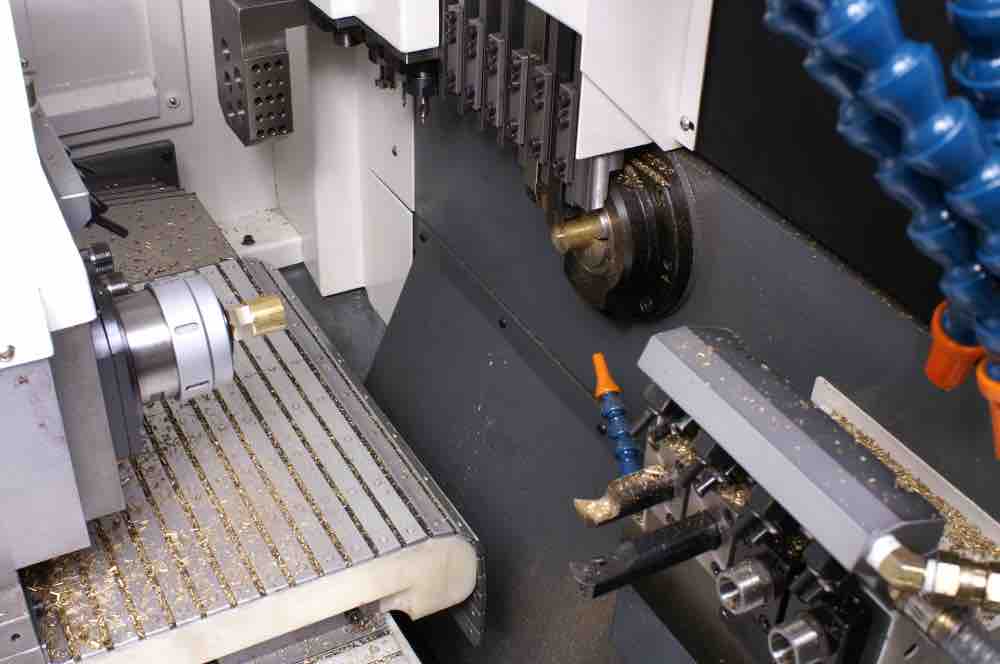

Arrangement of tools	O.D Tools			ea	6
	Front Work Tools			ea	5
	Horizontal (rotating) power tool			ea	4

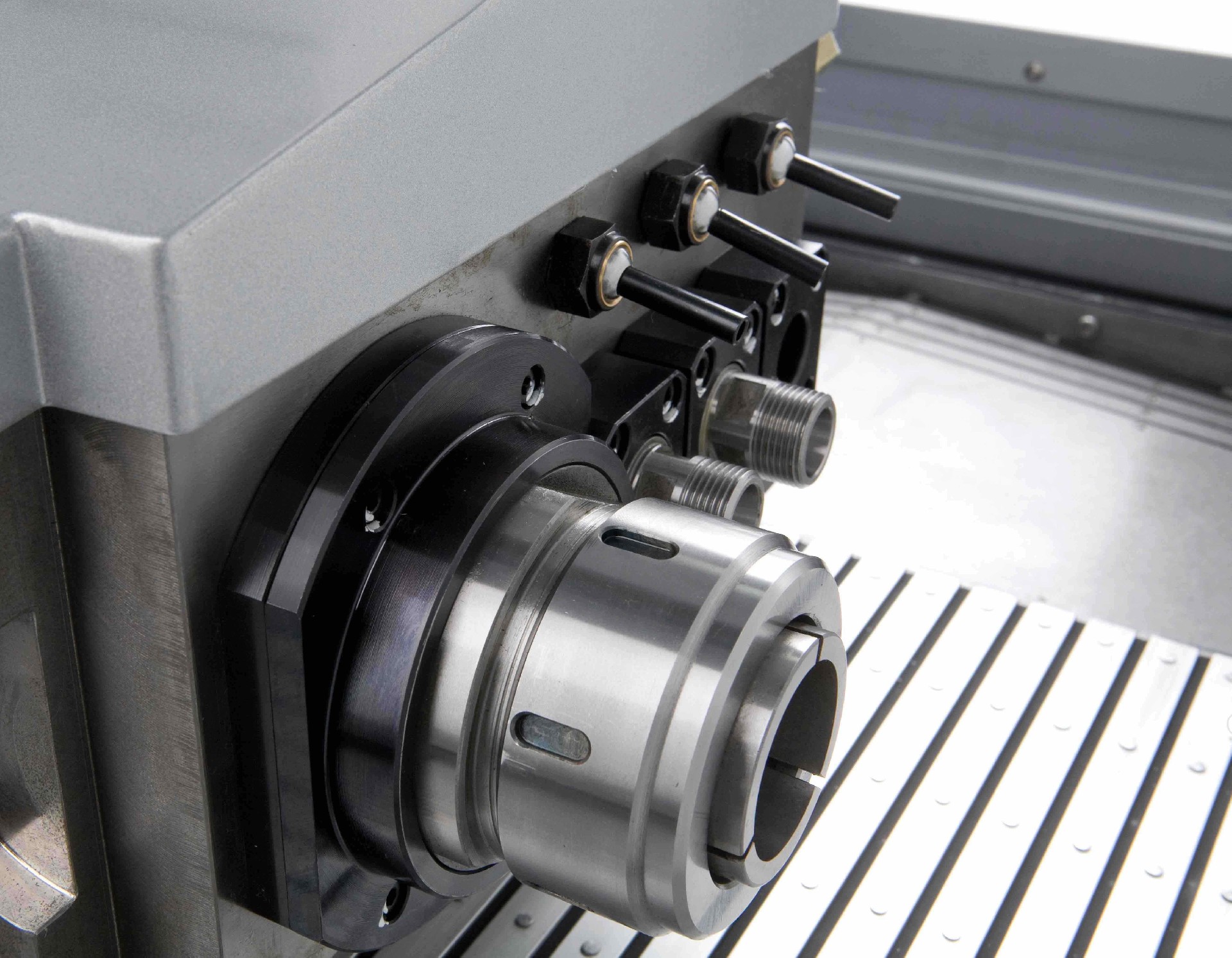

	Back-end tool (4 fixed tool)			ea	4
	O.D Tools specification			mm	□16×16
	Front Work Tools diameter			mm	￠20
	Power Tool Chuck Specifications			mm	ER16
Motors	Spindle motor			kw	5.5/7.5
	Sub Spindle motor			kw	1.5/2.2
	Feed axis servo motor			kw	1.0
	Horizontal (rotating) power tool			kw	0.55/1.1
	Lubrication pump motor			w	5
	Coolant motor			kw	0.9
Others	Coolant tank capacity			L	200
	Lubrication tank capacity			L	1.8
	Height from floor to spindle center			mm	1000
	Floor space		Length (L)	mm	2581
			Width (W)	mm	1563
			Height (H)	mm	1791
	Mass of machine			kg	3800

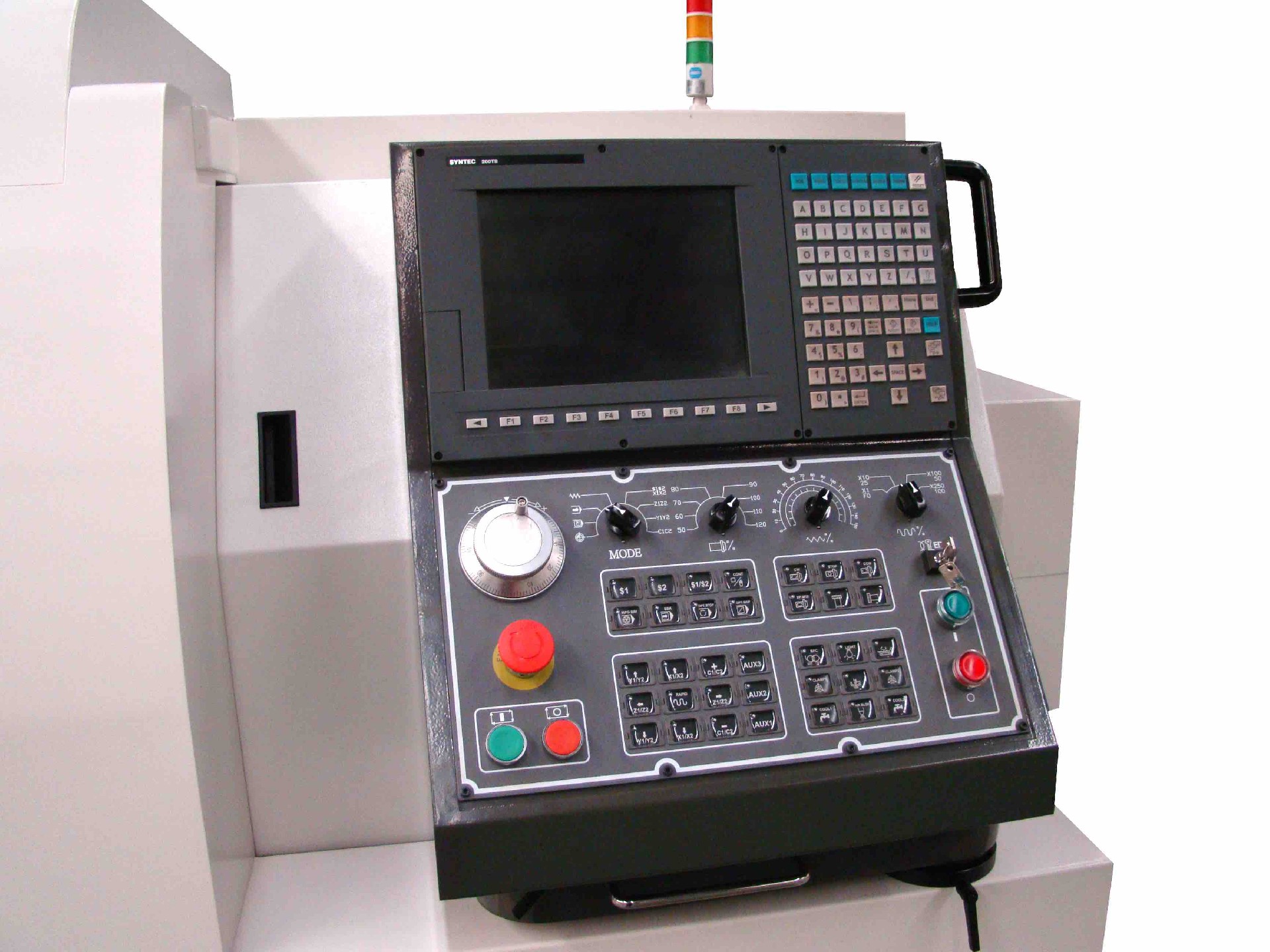

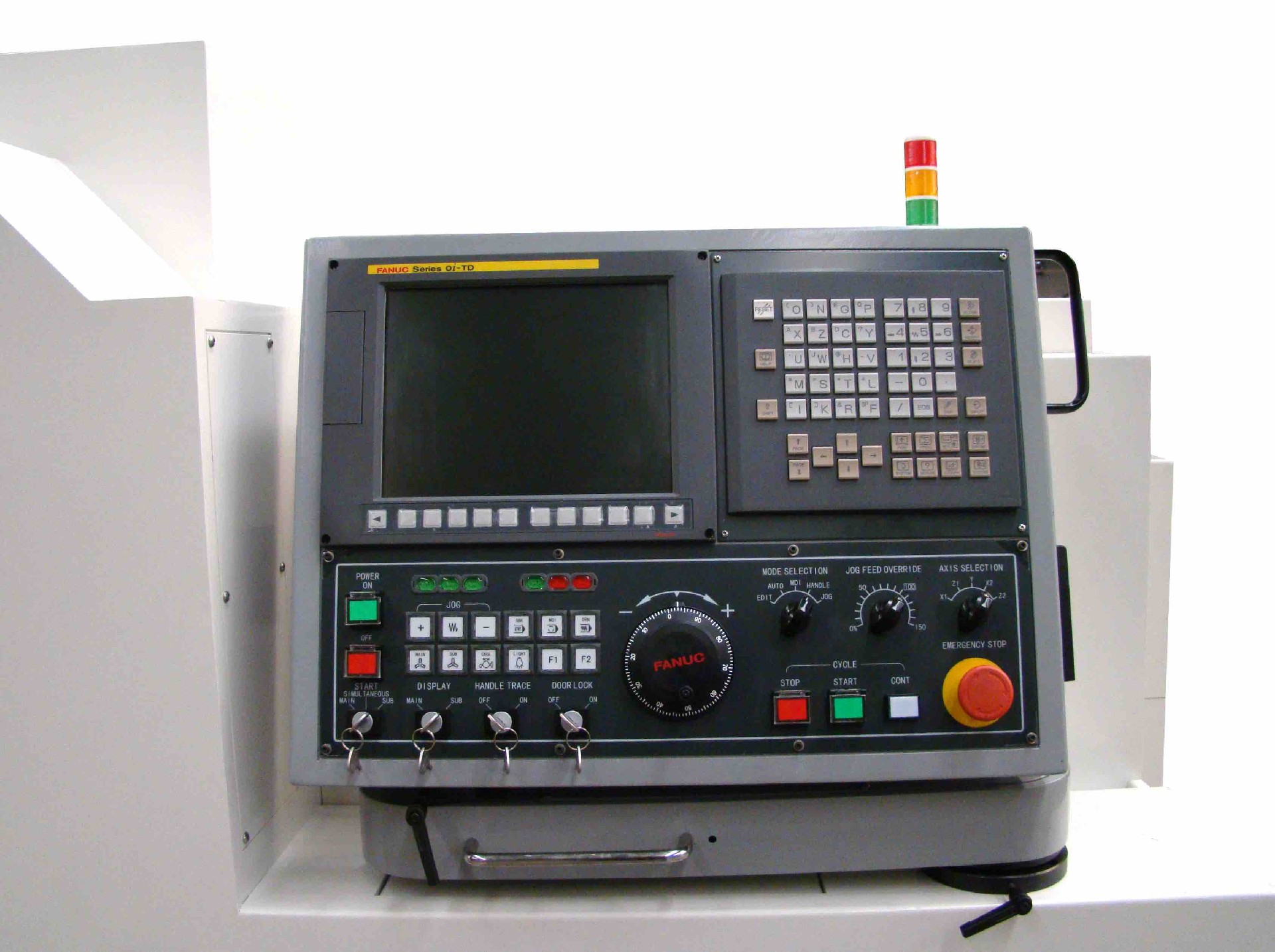

	CNC control unit			Advanced configuration	FANUC 0i- TD Dual channel α series

3. Standard Accessories

S/N	ITEM	QTY
1.	Background editing capabilities	1 Set
2.	Absolute / incremental editing	1 Set
3.	X-axis diameter / radius input	1 Set
4.	Constant surface cutting speed control	1 Set
5.	Tool offset value is entered directly	1 Set
6.	Single fixed cycle	1 Set
7.	Compound fixed cycle	1 Set
8.	Tool nose arc compensation	1 Set
9.	Metric / English conversion	1 Set
10.	Tool wear setting	1 Set
11.	Graphical display function	1 Set
12.	Self-diagnosis function	1 Set
13.	Return to the reference point	1 Set
14.	CF card socket	1 Set
15.	RS232 interface	1 Set
16.	Processing time / quantity that represents the function	1 Set
17.	Spindle Cs-axis control indexing locking device	1 Set
18.	Fast moving overload	1 Set
19.	Handwheel back function	1 Set
20.	Spindle, sub spindle rigid tapping	1 Set

4. Major component brands

Name	Brand	Place of Origin	Remarks
Screw	THK	Japan	Precision grinding P4 level
Guide	THK	Japan	C3级 Precise C3 level
lead screw bearing	NSK	Japan	Self centering P4 level
Spindle bearing	NSK	Japan	High speed angular contact bearing P4 level
Power head berring	NSK	Japan	Angular contact bearing P4 level
Synchronous axis precision spline shaft	THK	Japan	Advanced precision
Control system	FANUC	Japan	Dual channel
motorized	FANUC	Japan	α series
Servo motor	FANUC	Japan	α series

5.Special accessories

SN	ITEM	QTY
1	Hydrodynamic bar feeder PE542 3M	1
2	Sub-spindle long part discharge device	1
3	Double headed drilling fixture	1
4	High pressure coolant 70 bar	1
5	Whirlwind milling device	1
6	Hex punching device	1
7	Sub-spindle rear discharge device	1
