Swiss type lathe SC385

Cooperated with Korean HJM technology 38mm through hole double spindle CNC machine tools, the choice of high-power servo motor, torque, strong power
-High rigidity heavy cutting;
-Dual-channel system efficient processing;
-Shafts equipped with an imported high-precision Linear guide, ball screw, and precision bearings;

Online Consultation

Description

1. Introduction

-Cooperated with Korean HJM technology 38mm through hole double spindle CNC machine tools, the choice of high-power servo motor, torque, strong power

-High rigidity heavy cutting;

-Dual-channel system efficient processing;

-Shafts equipped with an imported high-precision Linear guide, ball screw, and precision bearings;

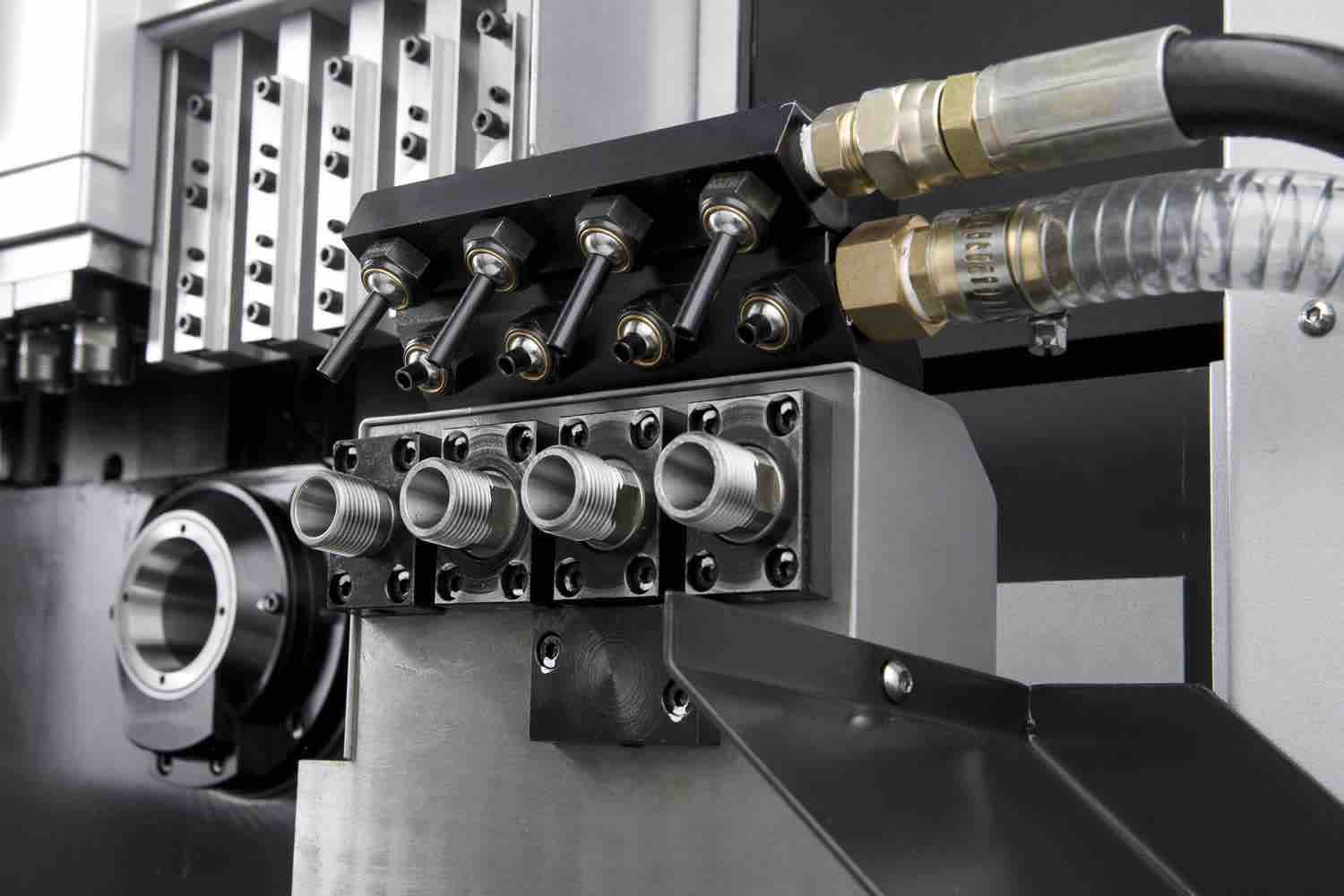

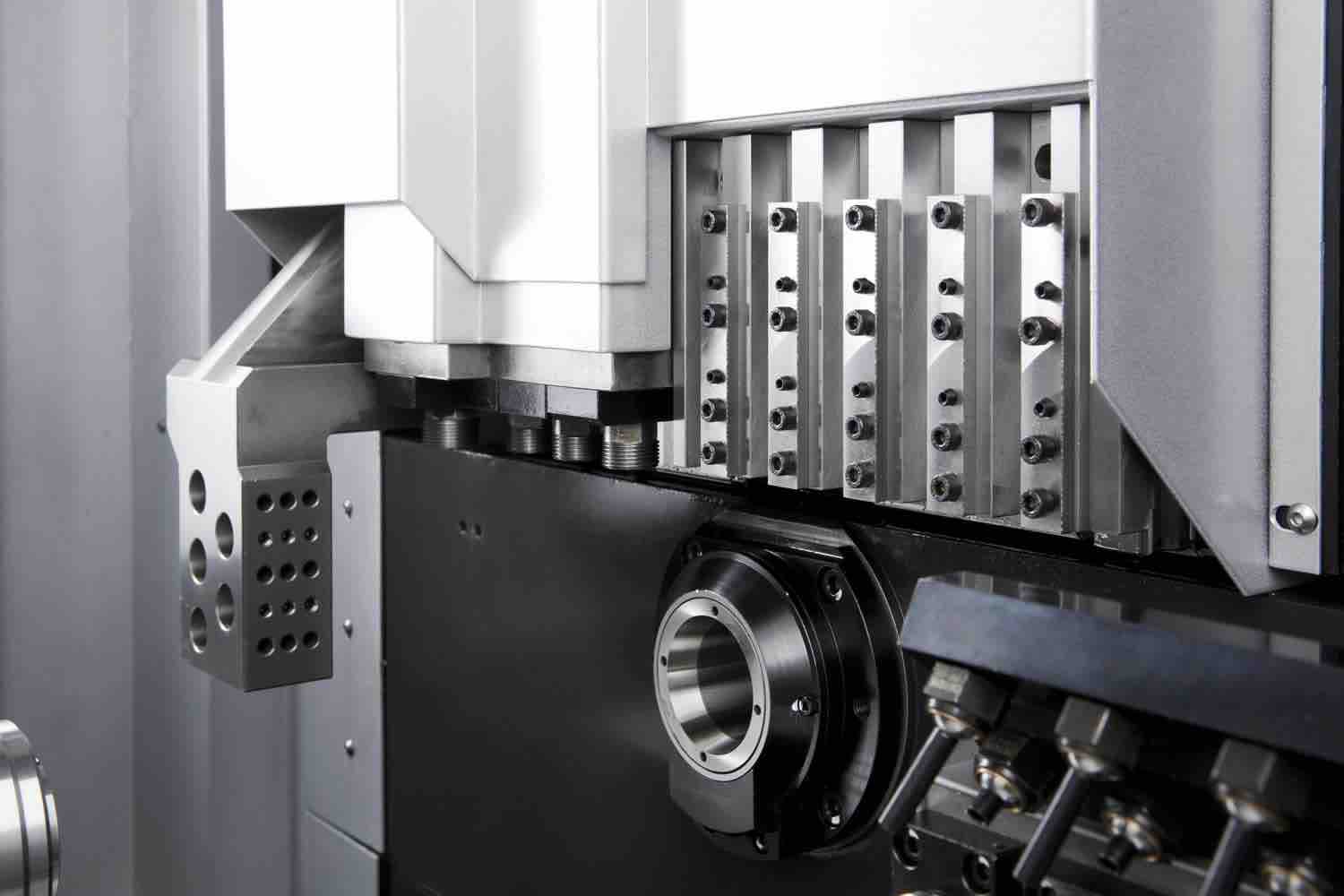

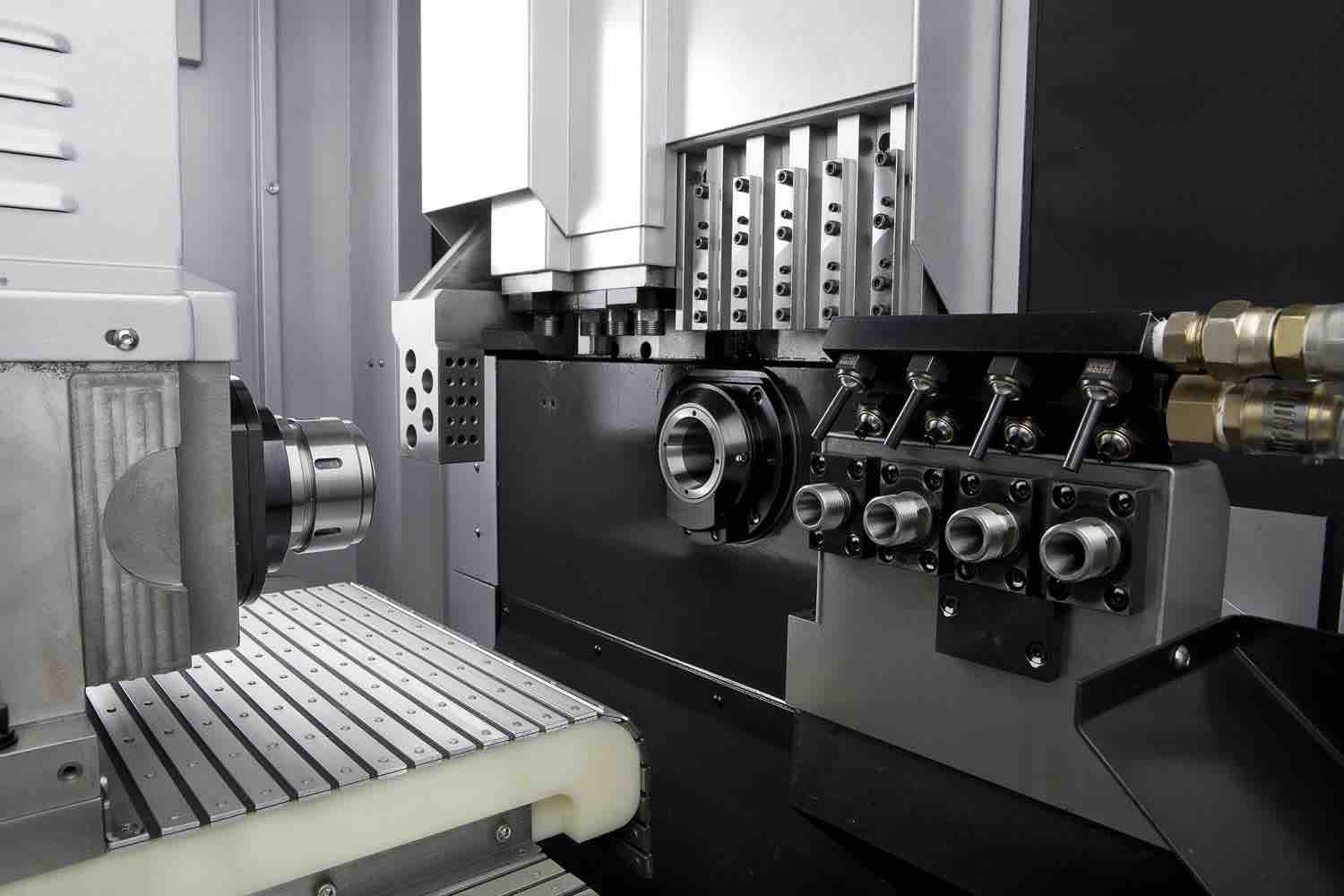

Arranged platoon reasonable, compact tool layout, flexible tool configuration;

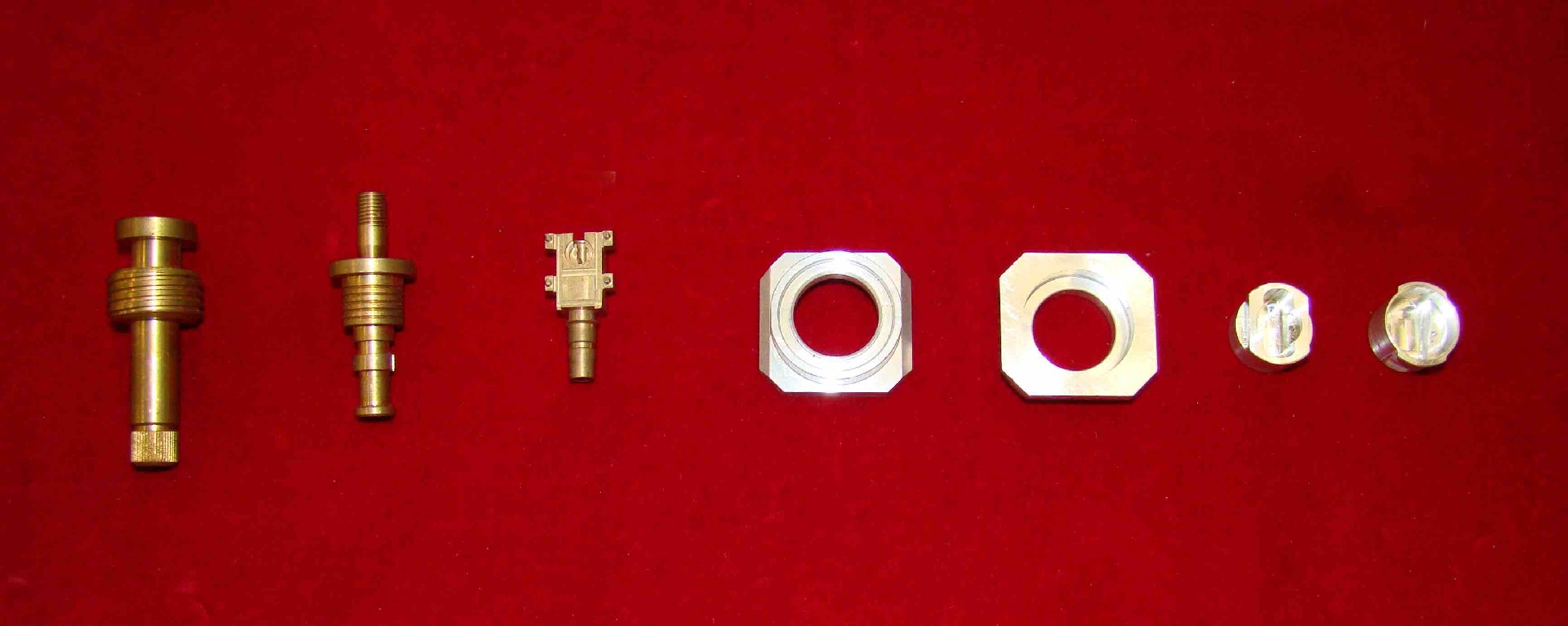

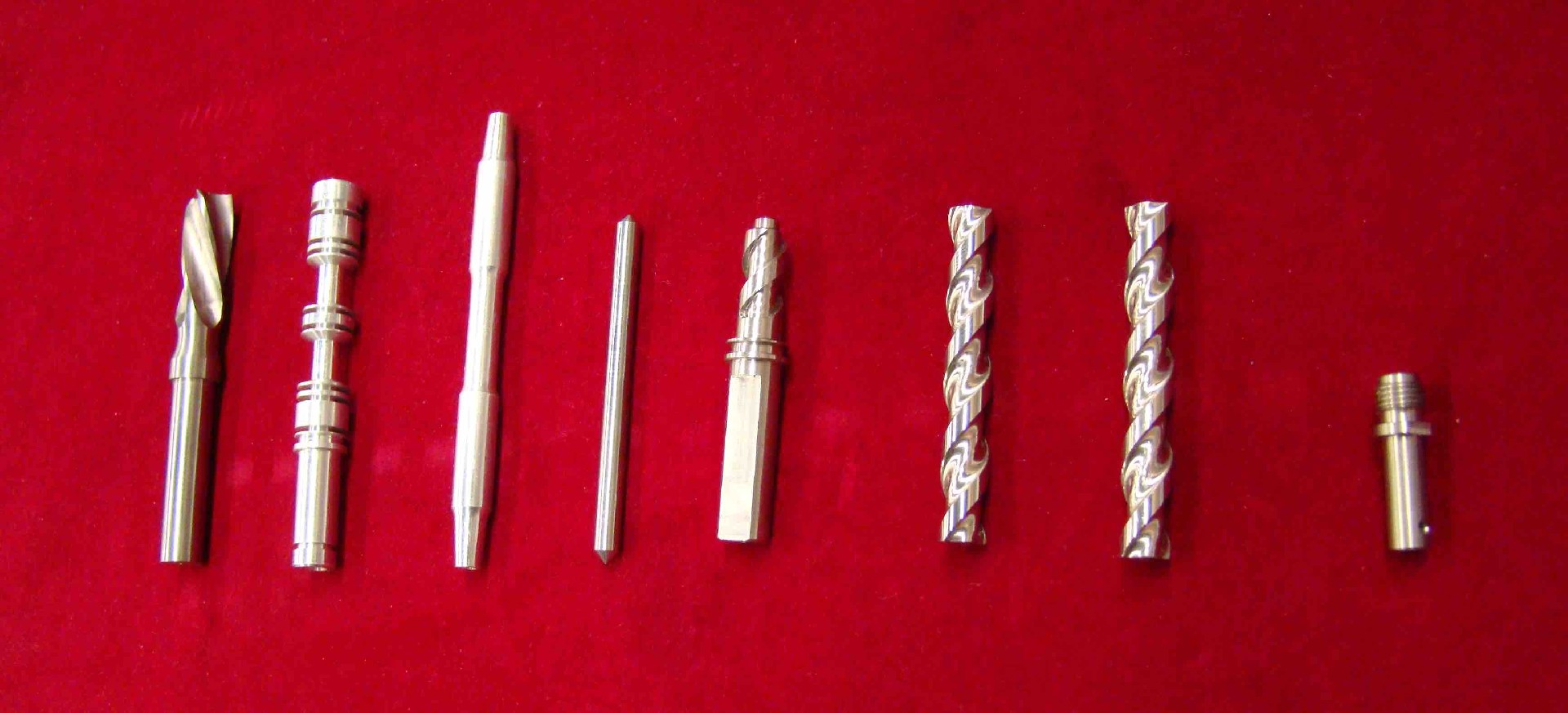

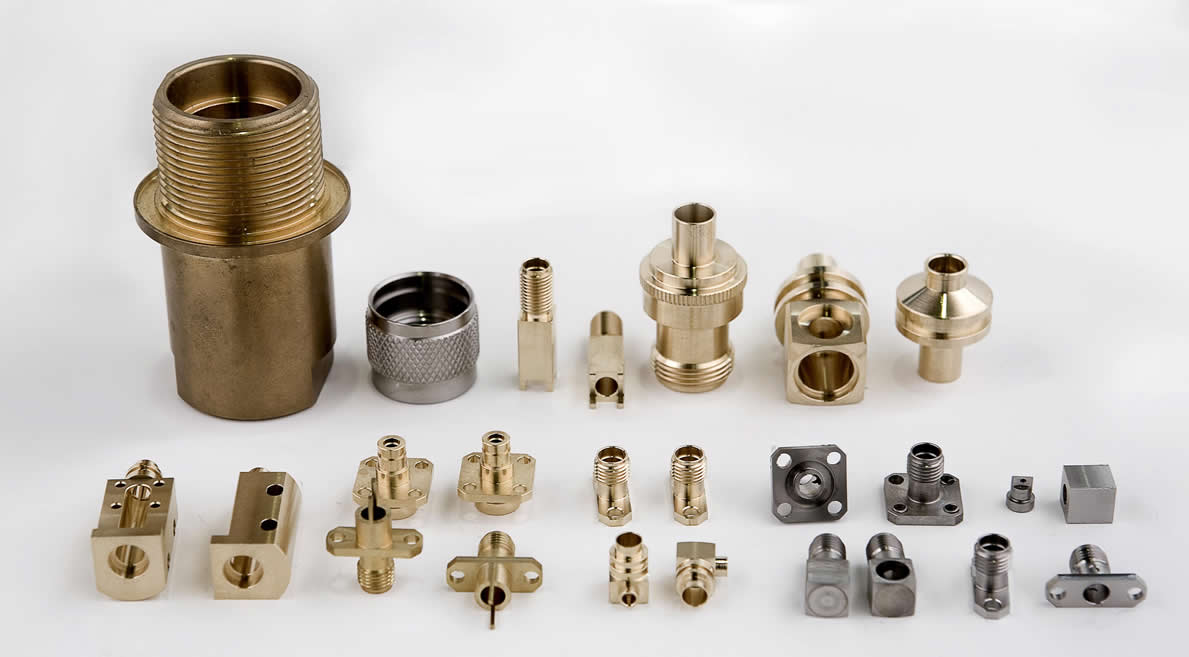

- A clamping 210mm, automatic processing of all the completed operations; Set of switching functions; Widely used in medical equipment, hardware tools, textile machinery, electronic communications, aerospace,e and other industries precision parts processing.

2. Specification

Describe				Unit	Specifications
Processing capacity	Max machining diameter			mm	￠38
	Stroke			mm	220
	Main Spindle RPM			rpm	8000
	Sub Spindle RPM			rpm	8000
	Cross Driven Tools RPM			rpm	5000
	Additional Positive Brake			°	1/1000（0.001）
Traverse Rate	Stroke	X1 axis		mm	60
		Y axis		mm	380
		Z1 axis		mm	220
		X2 axis		mm	380
		Z2 axis		mm	220
	Rapid Traverse Rate	X1 axis		m/min	24
		Y/Z1/X2/Z2 axis		m/min	32
Arrangement of tools	O.D Tools			ea	5
	Front Work Tools			ea	5
	Cross Driven Tools			ea	4
	Back Work Tools			ea	4
	O.D Tools specification			mm	□16×16
	Front Work Tools diameter			mm	3把￠25+2把￠20 three￠25+tow￠20
	Power Tool Chuck Specifications			mm	ER16
Motors	Spindle motor			kw	5.5/7.5
	Sub Spindle motor			kw	1.5/2.2
	Servo axis motor			kw	1.0
	Cross Driven Tools motor			kw	0.55/1.1
	Lubrication pump motor			w	5
	Coolant motor			kw	0.9
Others	Coolant tank capacity			L	200
	Lubrication tank capacity			L	1.8
	Height from floor to spindle center			mm	1000
	Floor space		(L)	mm	2800
			(W)	mm	1475
			(H)	mm	1850
	Mass of machine			kg	4500

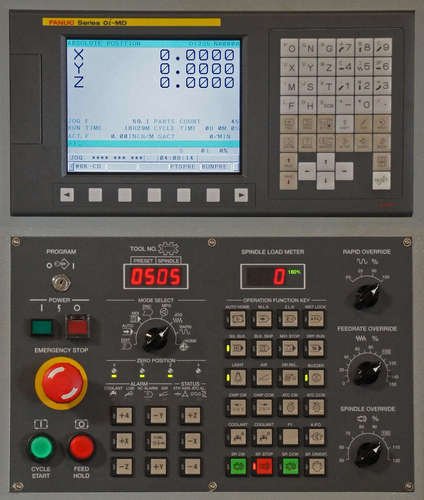

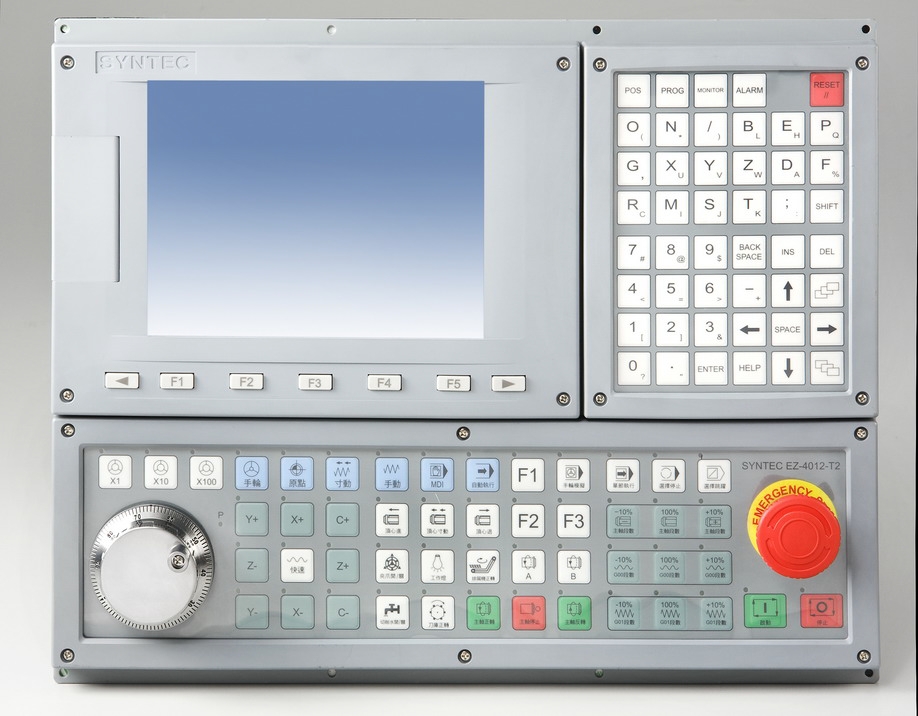

	CNC control unit			High-Specific	FANUC 0i- TD Dual channel α series

3. Standard Accessories

S/N	ITEM	QTY
1.	Background Edit	1 set
2.	Absolute / incremental editor	1 set
3.	X-axis diameter / radius input	1 set
4.	Constant surface speed control	1 set
5.	Direct input of tool offset value	1 set
6.	Single fixed cycle	1 set
7.	Compound Fixed Cycle	1 set
8.	Tip arc compensation	1 set
9.	Metric / inch conversion	1 set
10.	Setting tool wear	1 set
11.	Graphic display	1 set
12.	Self-diagnosis function	1 set
13.	Reference point	1 set
14.	CF card socket	1 set
15.	RS232 interface	1 set
16.	Processing time / quantity that represents the capabilities	1 set
17.	Spindle Cs-axis control indexing locking device	1 set
18.	Fast moving Overload	1 set
19.	Hand retrace function	1 set
20.	Collet chuck means	1 set
21.	Pneumatic clamping mechanism	1 set
22.	Centralized lubrication system	1 set
23.	working lamp	1 set
24.	Three-color warning lights	1 set
25.	Conveyor Parts	1 set
26.	Part receiving device	1 set
27.	Security locks	1 set
28.	transformer	1 set
29.	tools	1 set
30.	Spindle chucks/Guide chuck/Countershaft chuc	1 set（3）
31.	Sub spindle ejection apparatus	1 set
32.	Ottomans to iron	1 set
33.	Synchronous rotation guide means	1 set
34.	Cross Driven Tools	1 set
35.	Spindle, sub spindle in rigid tapping	1 set

4. Major component brands

Name	Brand	Place of Origin	Remarks
Screw	THK	Japan	Precision grinding P4 level
Guide	THK	Japan	C3级 Precise C3 level
lead screw bearing	NSK	Japan	Self centering P4 level
Spindle bearing	NSK	Japan	High speed angular contact bearing P4 level
Power head berring	NSK	Japan	Angular contact bearing P4 level
Synchronous axis precision spline shaft	THK	Japan	Advanced precision
Control system	FANUC	Japan	Dual channel
motorized	FANUC	Japan	α series
Servo motor	FANUC	Japan	α series

5. Special accessories

SN	ITEM	QTY
1	Hydrodynamic bar feeder PE542 3M	1
2	Sub-spindle long part discharge device	1
3	Double headed drilling fixture	1
4	High pressure coolant 70bar/150bar	1
5	Whirlwind milling device	1
6	Hex punching device	1
7	Oil-mist device	1
8	Sub-spindle rear discharge device	1
9	Back end tools 3 axis (rotating )+1 axis(fixed)	4ea
10	2 axis eccentricity tools (rotating ) +1 axis(fixed)	3ea
