Swiss type lathe AK164

-Cooperated with Korean HJM technology 16mm through hole double spindle CNC machine tools, the choice of high-power servo motor, torque, strong power
-High rigidity heavy cutting;
-Dual-channel system efficient processing;
-Shafts equipped with an imported high-precision Linear guide, ball screw, and precision bearings;

Online Consultation

Description

1. Introduction

-Cooperated with Korean HJM technology 16mm through hole double spindle CNC machine tools, the choice of high-power servo motor, torque, strong power

-High rigidity heavy cutting;

-Dual-channel system efficient processing;

-Shafts equipped with an imported high-precision Linear guide, ball screw, and precision bearings;

Arranged platoon reasonable, compact tool layout, flexible tool configuration;

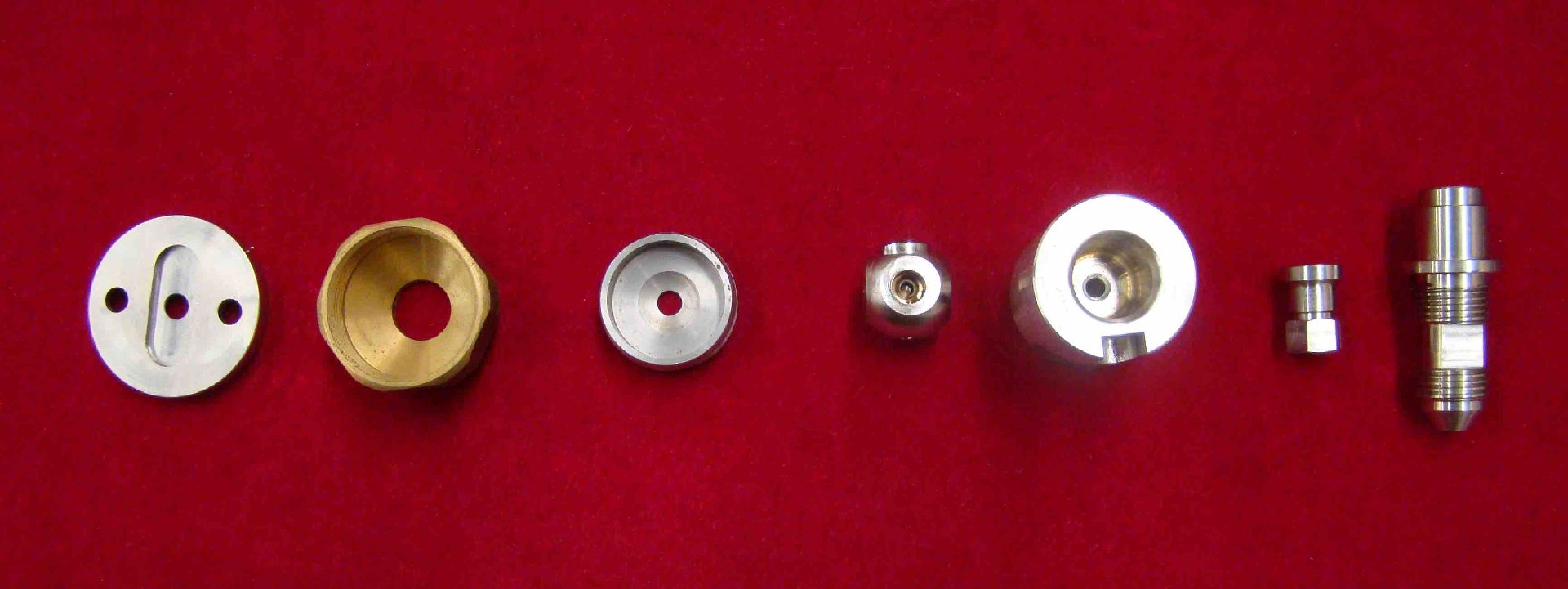

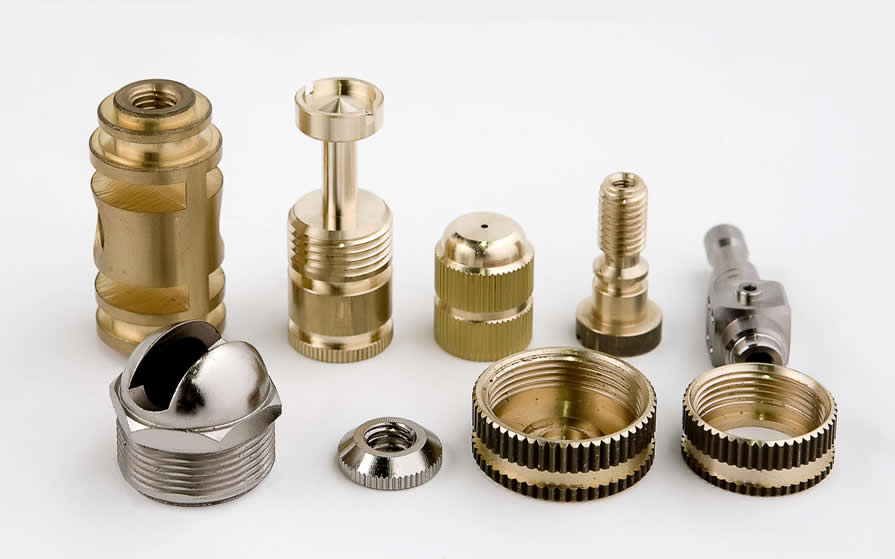

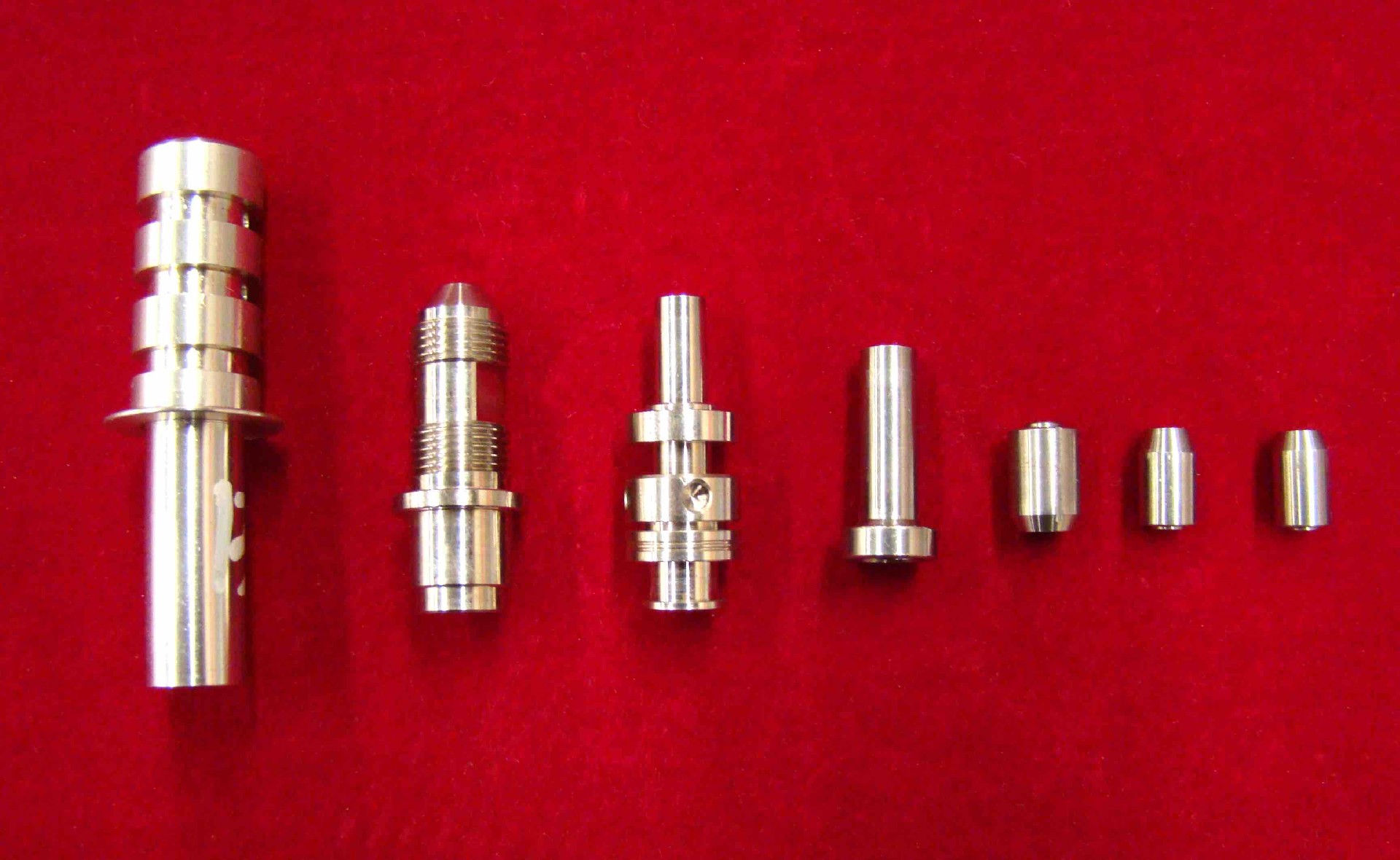

- A clamping 150mm, automatic processing of all the completed operations; Set of switching functions; Widely used in medical equipment, hardware tools, textile machinery, electronic communications, aerospace,e and other industries precision parts processing.

2. Specification

Describe				unit	specifications
Processing capacity	Max .machining diameter			mm	￠16
	Stroke			mm	150
	Main Spindle RPM			rpm	10000
	Sub Spindle RPM			rpm	8000
	Cross Driven Tools RPM			rpm	6000
	Cs Additional Positive Brake			°	1/1000（0.001）
Traverse Rate	Stroke		X1 axis	mm	60
			Y axis	mm	285
			Z1 axis	mm	150
			Z2 axis	mm	150
	Rapid Traverse Rate		X1 axis	m/min	24
			Y/Z1/Z2 axis	m/min	32

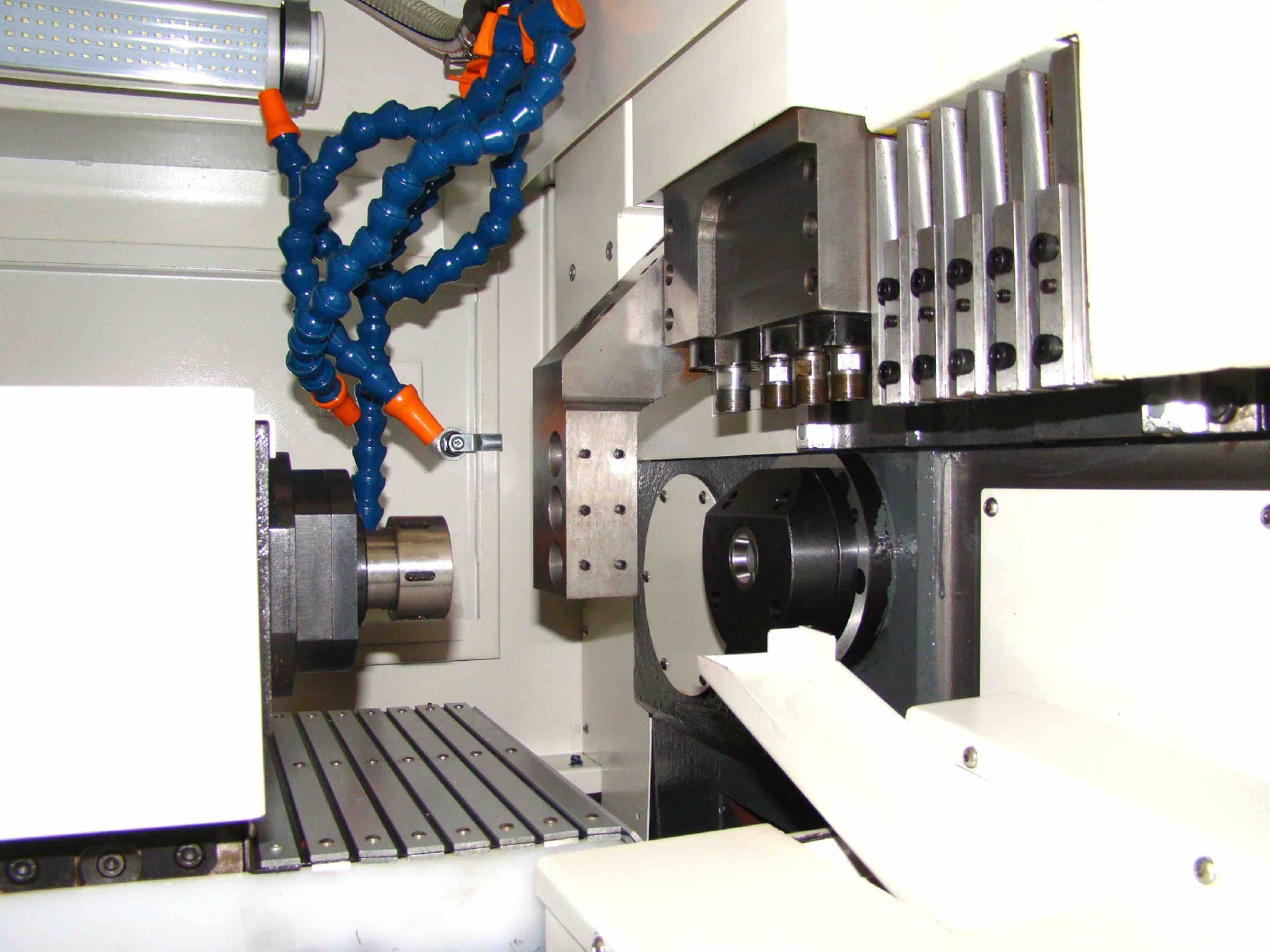

Arrangement of tools	O.D Tools			ea	6
	Front Work Tools			ea	3
	Cross Driven Tools			ea	3
	O.D Tools specification			mm	□12×12
	Front Work Tools diameter			mm	￠25
	Power Tool Chuck Specifications			mm	ER16
Motors	Spindle motor			kw	3.7/5.5
	Sub Spindle motor			kw	0.55/2.2
	Servo axis motor			kw	1.0
	Cross Driven Tools motor			kw	0.55/1.1
	Lubrication pump motor			w	5
	Coolant motor			kw	0.25

Others	Coolant tank capacity			L	180
	Lubrication tank capacity			L	1.8
	Height from floor tospindle center			mm	1050
	Floor space	(L)		mm	1950
		(W)		mm	1334
		(H)		mm	1680
	Mass of machine			kg	3000

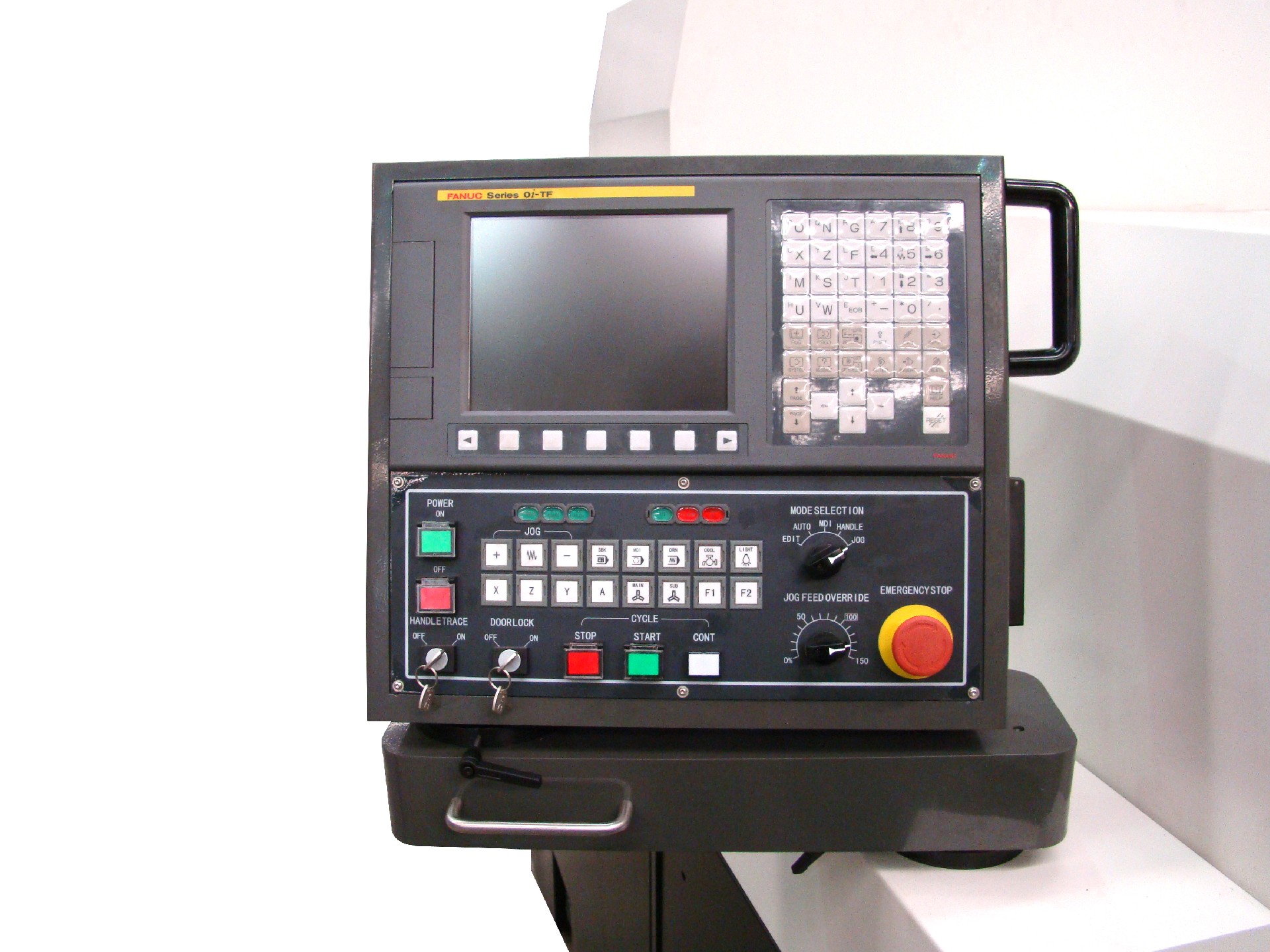

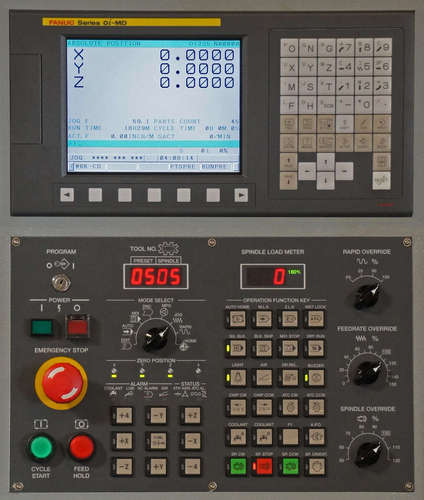

	CNC control unit				FANUC 0i- TD a series

3. Standard accessories

S/N	ITEM	QTY
1.	Background Edit	1 set
2.	Absolute / incremental editor	1 set
3.	X-axis diameter / radius input	1 set
4.	Constant surface speed control	1 set
5.	Direct input of tool offset value	1 set
6.	Single fixed cycle	1 set
7.	Compound Fixed Cycle	1 set
8.	Tip arc compensation	1 set
9.	Metric / inch conversion	1 set
10.	Setting tool wear	1 set
11.	Graphic display	1 set
12.	Self-diagnosis function	1 set
13.	Reference point	1 set
14.	CF card socket	1 set
15.	RS232 interface	1 set
16.	Processing time / quantity that represents the capabilities	1 set
17.	Spindle Cs-axis control indexing locking device	1 set
18.	Fast moving Overload	1 set
19.	Hand retrace function	1 set
20.	Collet chuck means	1 set
21.	Pneumatic clamping mechanism	1 set
22.	Centralized lubrication system	1 set
23.	working lamp	1 set
24.	Three-color warning lights	1 set
25.	Part receiving device	1 set
26.	Security locks	1 set
27.	transformer	1 set
28.	tools	1 set
29.	Main/sub-spindle collet, guide bush	1 set（3）
30.	Sub spindle ejection apparatus	1 set
31.	Ottomans to iron	1 set
32.	Synchronous rotation guide means	1 set
33.	3 axis Cross Driven Tools	1 set
34.	Spindle, sub spindle in rigid tapping	1 set

4.Major component brands

ITEM	BRAND	ORIGIANL	NOTE
Screw	THK	Japan	Precision grinding P4 class
Guide	THK	Japan	Precision C3 class
lead screw bearing	NSK	Japan	Self-aligning, level P4
Spindle bearing	NSK	Japan	High speed angular contact bearing, P4 class
Power head bearing	NSK	Japan	Angular contact bearings, class P4
Synchronous axis precision spline shaft	THK	Japan
Control system	FANUC	Japan	FANUC 0i-TD a series
Motorized Spindle	FANUC	Japan	a series
Servo motor	FANUC	Japan	a series

5. Special accessories

SN	ITEM	QTY
1	Hydrodynamic bar feeder RAY326 3M	1
2	Sub-spindle long part discharge device	1
3	Double headed drilling fixture	1
4	High pressure coolant 70 bar	1
5	Whirlwind milling device	1
6	Hex punching device	1
7	Sub-spindle rear discharge device	1
